Documents: SCE-FA1010-24VDC

FREIGHT DAMAGE POLICY CAD Package Fan & Grille Kit Thermal Management Chart More Info

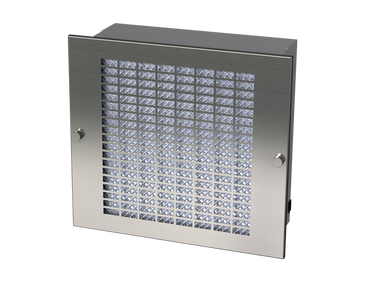

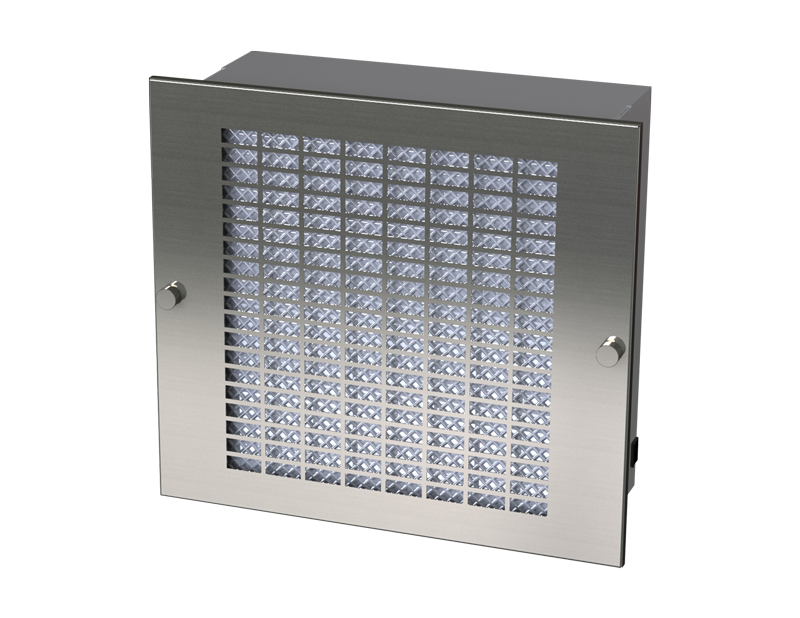

SCE-FA1010-24VDC | NEMA IS24 | Assembly, Fan Housing (10in.) 24VDC, 12H x 13W x 5D | Saginaw

Brand: SaginawSKU: SCE-FA1010-24VDC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-FA1010-24VDC

Jump to: Overview & Specifications Reviews

Overview Details for SCE-FA1010-24VDC

Construction

UL Listed Motor

Application

Designed for use in enclosures that require cooling but have limited space. Consists of a washable aluminum filter, steel air plenum, removable stainless steel grille, single phase fan, and approximately 14 inch of lead wire. Grille has captivated thumbnuts for easy access to the filter from the outside. Fan is available in 115 or 230 volt AC, 60/50 Hertz (HZ) single phase or 24 VDC. Air plenum is ANSI-61 gray urethane polyester powder coated.

Industry Standards - (IS17)

NEMA Not Applicable
UL Not Applicable
CSA N/A

Notes

UL Listed Motor File # E137077
Motor w/ Thermal Protection

Specifications

Item Number	SCE-FA1010-24VDC
Brand	Saginaw
Enclosure Depth (IN)	5
Enclosure Height (IN)	12
Enclosure Type	Assembly
Enclosure Width (IN)	13
IS21 Enclosure Rating	NEMA 4
