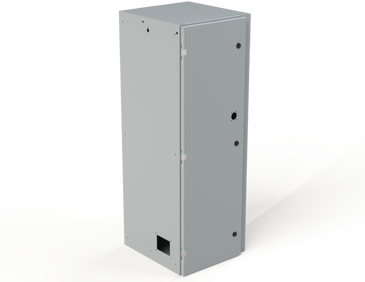

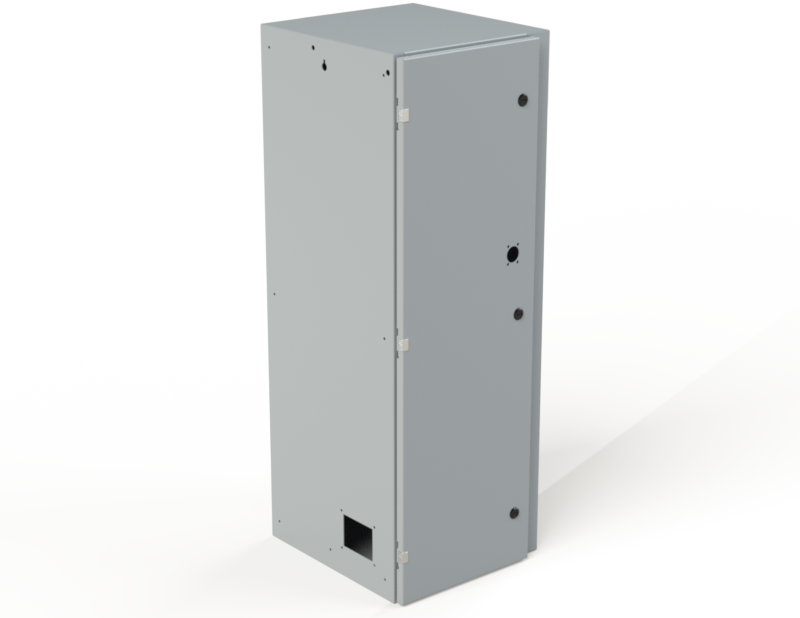

External Disconnect Enclosure Rotary 400 amp
Construction
- 0.075 In. steel
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil and water resistant gasket
- Collar studs provided for mounting panels.
- Galvanized Subpanel installed.
- Concealed hinges.
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Mounting hardware included.
- Cable Operated Mechanical interlock and hardware included.
- Provisions for Rotary Compact Fusible disconnect
- For use with flange mount disconnect enclosures
Application
Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used with an environmentally rated enclosure to isolate the main power supply. It increases personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reduces the PPE level for the lower risk components of the main enclosure. This External Disconnect Enclosure is designed specifically to accommodate the Rotary Compact Fusible disconnect Allen-Bradley 194R, Square D GS2, Eaton/Bussmann R9, Siemens CFS and Scocomec Fuserbloc Models. Aids in achieving compliance with NFPA 70E by concealing main power supply.
Industry Standards - (IS4)
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
Notes
Cable Operated Mechanical Locking
Patent US 11,396,762 B2
Specifications
| Item Number | SCE-EXR18-400 |
| Brand | Saginaw |
| Enclosure Depth (IN) | 18 |
| Enclosure Height (IN) | 48 |
| Enclosure Rating | NEMA 12 |
| Enclosure Rating | NEMA 3R |
| Enclosure Rating | NEMA 4 |
| Enclosure Width (IN) | 17 |
