SCE-EXD18SS | NEMA 3R, 12, 4, 4X | S.S. XEL Enclosure, 35H x 15W x 18D | Saginaw
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$2,002.43
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships via FREIGHT
FREIGHT DAMAGE POLICY
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Image for Technical Expert

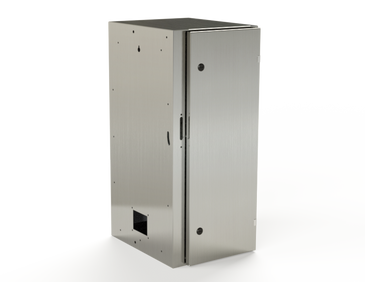

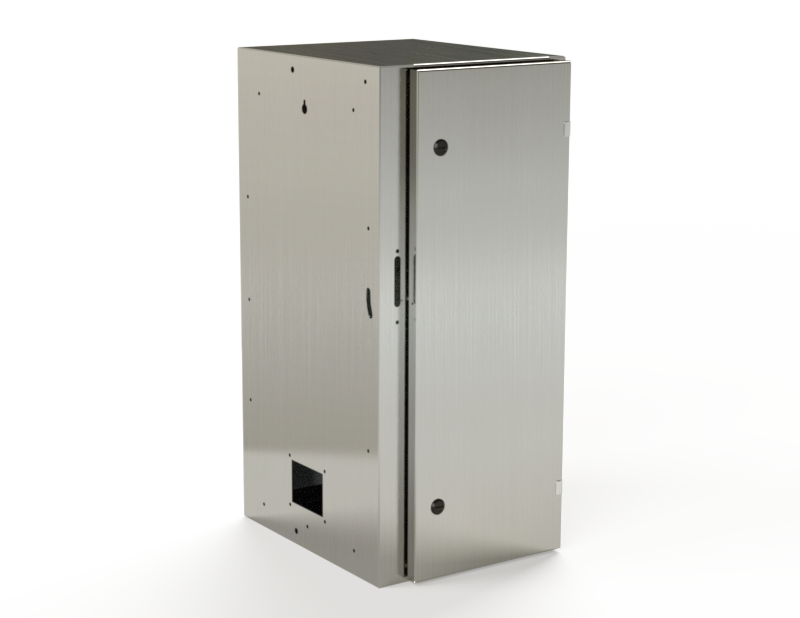

SCE-EXD18SS | NEMA 3R, 12, 4, 4X | S.S. XEL Enclosure, 35H x 15W x 18D | Saginaw

Brand: SaginawSKU: SCE-EXD18SS
Saginaw | SCE-EXD18SS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-EXD18SS

Overview Details for SCE-EXD18SS

Construction

  • 0.075 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil and water resistant gasket
  • Collar studs provided for mounting panels.
  • 31in. H X 13in. W Galvanized Subpanel installed.
  • Concealed hinge.
  • Black quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Mounting hardware included.
  • Mechanical interlock and hardware included.
  • Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
  • Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
  • Provision for 200 amp disconnect or less (Ref. D1 Cutout) - for use with Allen Bradley, Square D and Eaton (FHS) models only

Application

Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used with an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components of the main enclosure. The External Disconnect Enclosure can be incorporated into a new system. Aids in achieving compliance with NFPA 70E by concealing main power supply.

For Use with Flange Mount Disconnect Enclosures Ref. SCE-84XM4018 or Similar.

Finish

ANSI-61 gray powder coating inside and out.
SS 304 Stainless steel with #4 Brushed finish.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

For Use with Flange Mount Disconnect Enclosures Ref. SCE-84XM4018 or Similar.

**Replace enclosure door handle with padlock-only version.
Ref. SCE-PH5, SCE-PH7, SCE-SSPH5
SCE-DCP Blank Disconnect Coverplate will be required to cover flange mount disconnect cutout in the main enclosure, (SCE-DCP sold separately)

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-EXD18SS
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 18
Enclosure Height (IN) 35
Enclosure Type S.S. XEL Enclosure
Enclosure Width (IN) 15
