SCE-EXD12 | External Disconnect Enclosure | Saginaw

Brand: SaginawSKU: SCE-EXD12

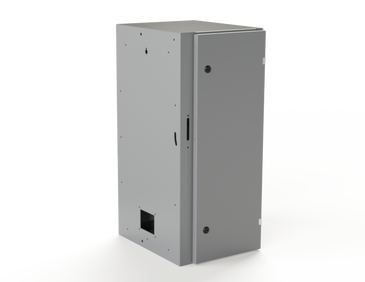

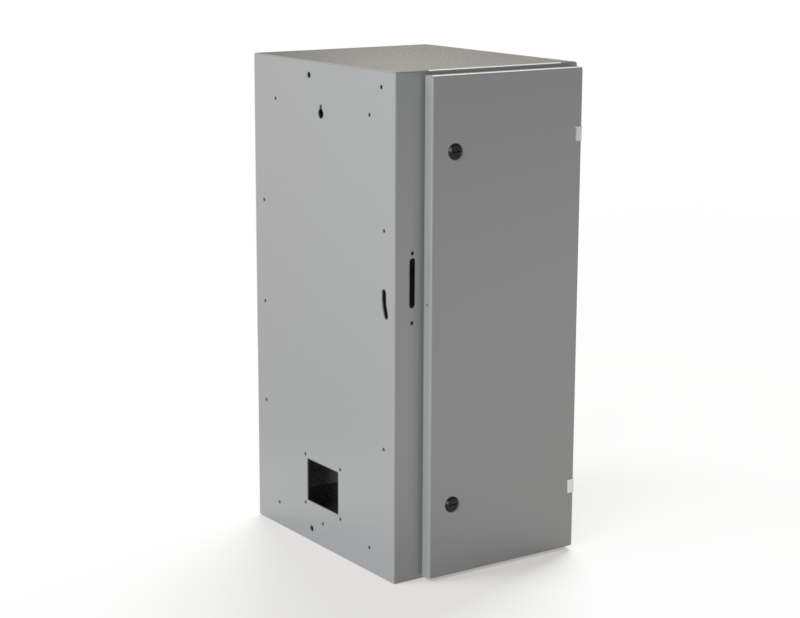

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-EXD12

Jump to: Overview & Specifications Reviews

Overview Details for SCE-EXD12

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Pour in place oil and water resistant gasket
Collar studs provided for mounting panels.
31in. H X 13in. W Galvanized Subpanel installed.
Concealed hinge.
Black quarter turn latches.
Latches are opened or closed with a screwdriver.
Mounting hardware included.
Mechanical interlock and hardware included.
Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
Provision for 200 amp disconnect or less (Ref. D1 Cutout) - for use with Allen Bradley, Square D and Eaton (FHS) models only

Application

Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used with an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components of the main enclosure. The External Disconnect Enclosure can be incorporated into a new system. Aids in achieving compliance with NFPA 70E by concealing main power supply.

For Use with Flange Mount Disconnect Enclosures Ref. SCE-84XM4018 or Similar.

Finish

ANSI-61 gray powder coating inside and out.
SS 304 Stainless steel with #4 Brushed finish.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

For Use with Flange Mount Disconnect Enclosures Ref. SCE-84XM4018 or Similar.

**Replace enclosure door handle with padlock-only version.
Ref. SCE-PH5, SCE-PH7, SCE-SSPH5
SCE-DCP Blank Disconnect Coverplate will be required to cover flange mount disconnect cutout in the main enclosure, (SCE-DCP sold separately)

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-EXD12
Brand	Saginaw
Enclosure Depth (IN)	12
Enclosure Height (IN)	35
Enclosure Rating	NEMA 12
Enclosure Rating	NEMA 3R
Enclosure Rating	NEMA 4
Enclosure Width (IN)	15
