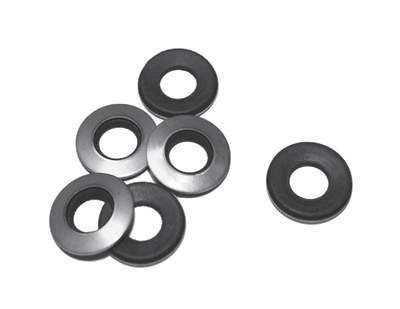

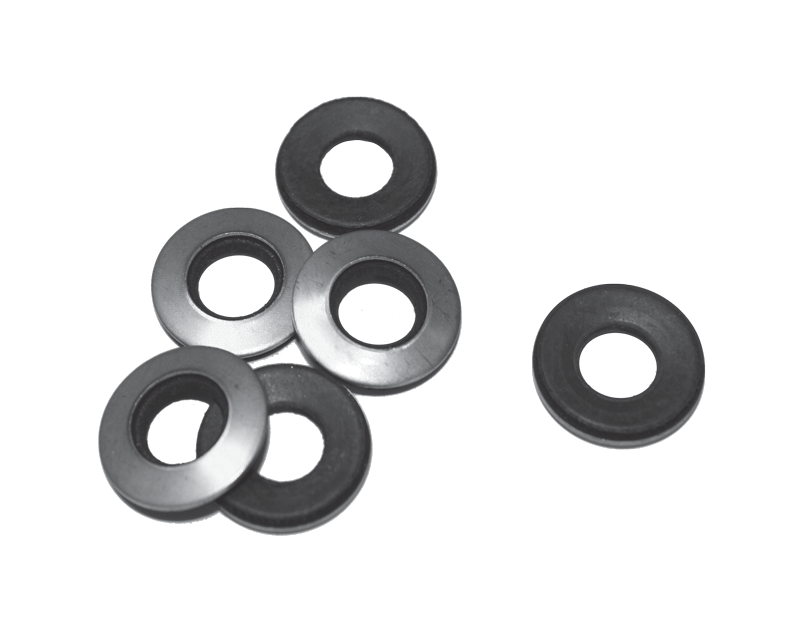

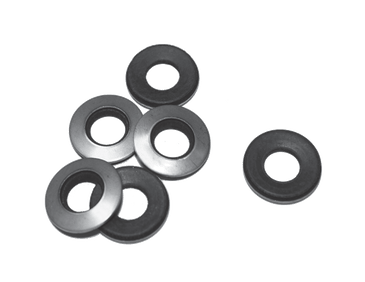

SCE-BSW19SS | NEMA IS24 | S.S. Sealing Washers (50pcs), 6H x 6W x 2D | Saginaw

Brand: SaginawSKU: SCE-BSW19SS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-BSW19SS

Jump to: Overview & Specifications Reviews

Overview Details for SCE-BSW19SS

Application

Designed for use on the flat surface of environmentally rated enclosures to maintain the rating of type 2, 3, 3R, 3S, 4, 4X and 12 when holes for fastener must be provided for the installation of mounting brackets, drip shields and other accessories on the inside or outside of the enclosure body or doors.

Industry Standards - (IS24)

UL Component Recognized

Notes

QTY: 50 per package
UL Component Recognize Type 2, 3, 3R, 4, 4X, and 12
UL File # E69392
IEC 60529 IP 66

SCE-BSW19SS suitable for use with 10-32
SCE-BSW25SS suitable for use with 1/4-20
SCE-BSW31SS suitable for use with 5/16
SCE-BSW38SS suitable for use with 3/8

Specifications

Item Number	SCE-BSW19SS
Brand	Saginaw
Enclosure Depth (IN)	2
Enclosure Height (IN)	6
Enclosure Type	S.S. Sealing Washers (50pcs)
Enclosure Width (IN)	6
IS21 Enclosure Rating	NEMA 4
