SCE-BP230 | NEMA IS24 | Blower Package, 6H x 19W x 7D | Saginaw

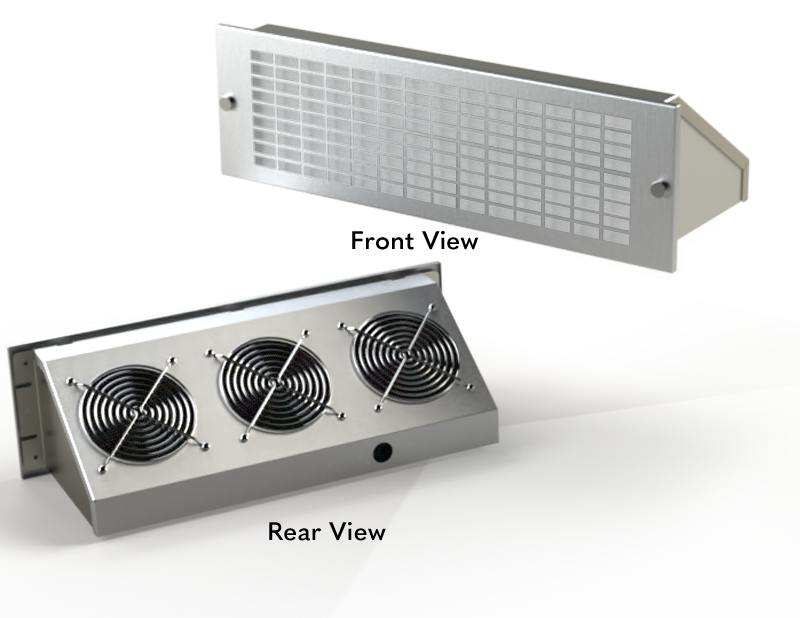

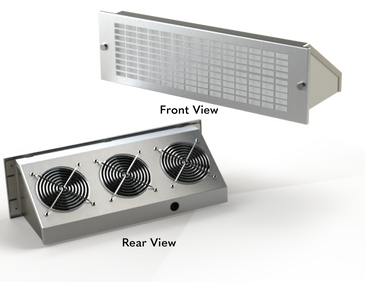

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-BP230

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-BP230 Documents

FREIGHT DAMAGE POLICY CAD Package Blower Package Blower Package Thermal Management Chart More Info

Overview

Details for SCE-BP230

NEMA IS24 | Blower Package, 6H x 19W x 7D

Application

Designed for use in enclosures that require cooling but have limited space. Consists of a washable aluminum air filter, steel air plenum, removable stainless steel grille. Grille has captivated thumbnuts for easy access to the filter from the outside. Fan is 115 or 230 volt AC 60/50 Hertz (HZ). The 125 degree angled design provides greater air movement within the enclosure. Air plenum is ANSI 61 gray urethane polyester powder coated.

Industry Standards - (IS24)

UL Component Recognized

Specifications

Item Number	SCE-BP230
Brand	Saginaw
Enclosure Depth (IN)	7
Enclosure Height (IN)	6
Enclosure Type	Blower Package
Enclosure Width (IN)	19
IS21 Enclosure Rating	NEMA 4
