SCE-AC2550B230VSS | Conditioner, Air - 2550 BTU/Hr. 230 Volt | 32.68 (H) x 12 (W) x 10.63 (D) | Saginaw

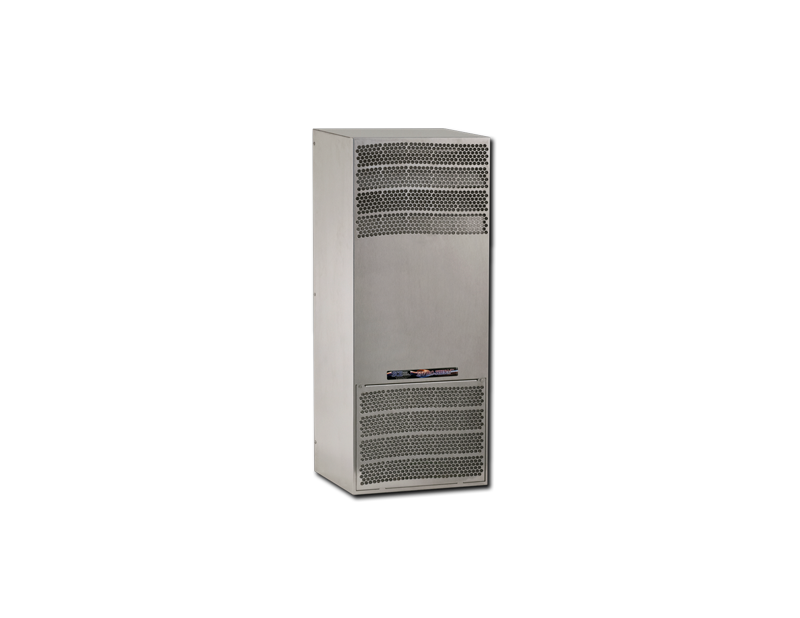

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-AC2550B230VSS
Documents and manuals
Overview
Details for SCE-AC2550B230VSS
Conditioner, Air - 2550 BTU/Hr. 230 Volt | 32.68 (H) x 12 (W) x 10.63 (D)
Construction
- Closed Loop Cooling System
- Hermitically sealed Reciprocating Compressor
- Internal Components are Corrosion Resistant
- Specially designed Active Condensate System using PTC heater element
- Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging
- Washable, Reusable 8 layer aluminum mesh filters included
- Captive screw fastened filter cover
- Integrated compressor heater for Low Ambient temperatures and up to 2000 watts of Enclosure Heat
- R134a Refrigerant - Chlorine-free and harmless to the environment
- Easy Mounting Flange hangers for installation included
- Digital Touchpad Programmable Controller, viewable and accessible from inside enclosure
- Controller Preset 95°F to cool - adjustable 68°F to 122°F
- Preset at 41°F to heat - adjustable -4°F to 122°F
- Temperature differential hysteresis 5.4°F
- High temp alarm Preset 131°F
- High performance ball bearing fans
- Door activated switch wiring provisions provided for easy installation
- Cage clamp terminal connector
- Oil and water resistant gaskets installed
Application
Enviro-Therm® Air Conditioners are designed with an internal closed loop system to provide protection from dust, oil and water. For indoor and outdoor application. Rugged, energy efficient,and reliable cooling system.
Finish
#4 brushed finish 304 Stainless Steel Cover and Frame
Industry Standards - (IS20)
- NEMA Type 3R, 4, 4X and 12
- UL Recognized Type 3R, 4, 4X and 12
- IEC 60529
- IP 56
Notes
UL File # SA32278
Specifications
Item Number | SCE-AC2550B230VSS |
Brand | Saginaw |
Accessory | Conditioner; Air - 2550 BTU/Hr. 230 Volt |
Depth (IN) | 10.63 |
Height (IN) | 32.68 |
UL Rating | IS20 |
Width (IN) | 12 |
