SCE-AC2550B230V | NEMA IS19 | Conditioner, Air - 2550 BTU/Hr. 230 Volt, 33H x 12W x 11D | Saginaw

Brand: SaginawSKU: SCE-AC2550B230V

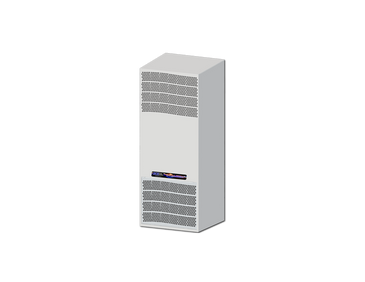

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-AC2550B230V

Jump to: Overview & Specifications Reviews

Overview Details for SCE-AC2550B230V

Construction

Closed Loop Cooling System
Hermitically sealed Reciprocating Compressor
Internal Components are Corrosion Resistant
Specially designed Active Condensate System using PTC heater element
Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging
Washable, Reusable 8 layer aluminum mesh filters included
Captive screw fastened filter cover
Integrated compressor heater for Low Ambient temperatures and up to 2000 watts of Enclosure Heat
R134a Refrigerant - Chlorine-free and harmless to the environment
Easy Mounting Flange hangers for installation included
Digital Touchpad Programmable Controller, viewable and accessible from inside enclosure
Controller Preset 95°F to cool - adjustable 68°F to 122°F
Preset at 41°F to heat - adjustable -4°F to 122°F
Temperature differential hysteresis 5.4°F
High temp alarm Preset 131°F
High performance ball bearing fans
Door activated switch wiring provisions provided for easy installation
Cage clamp terminal connector
Oil and water resistant gaskets installed

Application

Enviro-Therm® Air Conditioners are designed with an internal closed loop system to provide protection from dust, oil and water. For indoor and outdoor application. Rugged, energy efficient,and reliable cooling system.

Finish

Powder coated steel Cover RAL 7035 River Texture over Aluzinc coated steel

Industry Standards - (IS19)

NEMA Type 3R, 4 and 12
UL Recognized Type 3R, 4 and 12
IEC 60529
IP 56

Notes

cULus File Component Recognized SA32278
cULus Listed E498756

Specifications

Item Number	SCE-AC2550B230V
Brand	Saginaw
1 Enclosure Rating	IS19
Enclosure Depth (IN)	11
Enclosure Height (IN)	33
Enclosure Type	Conditioner
Enclosure Width (IN)	12
