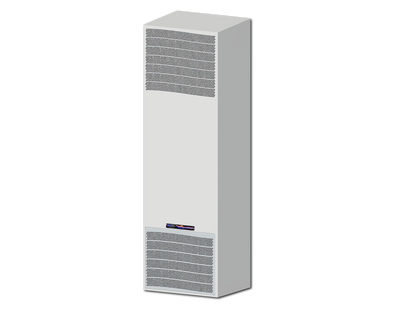

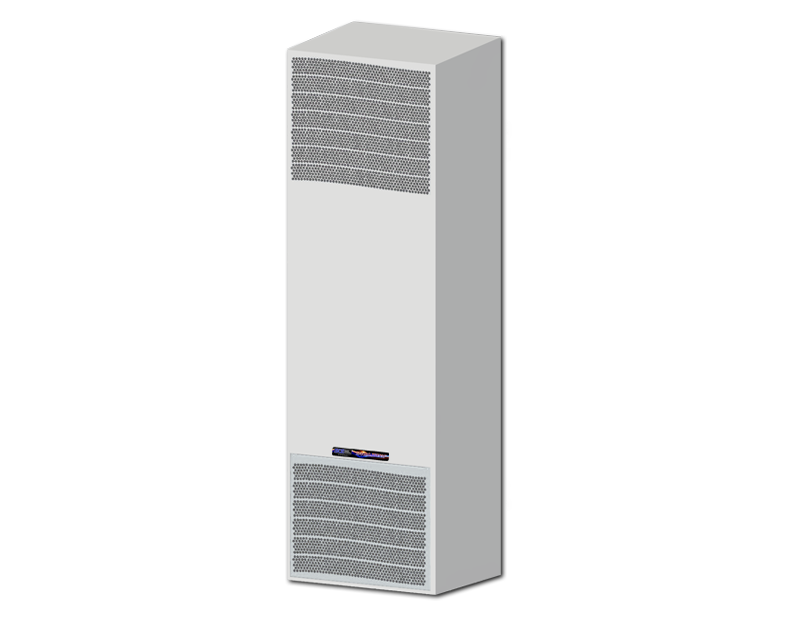

SCE-AC10200B230V | NEMA IS19 | Conditioner, Air - 10200 BTU/Hr. 230 Volt, 61H x 18W x 14D | Saginaw

Construction

• Closed Loop Cooling System
• Hermitically sealed Rotary Compressor
• Internal Components are Corrosion Resistant
• Specially designed Active Condensate System using PTC heater element
• Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging
• Washable, Reusable 8 layer aluminum mesh filters included
• Captive screw fastened filter cover
• Integrated compressor heater for Low Ambient temperatures and up to 2000 watts of Enclosure Heat
• R134a Refrigerant - Chlorine-free and harmless to the environment
• Easy Mounting Flange hangers for installation included
• Digital Touchpad Programmable Controller, viewable and accessible from inside enclosure
• Controller Preset 95°F to cool - adjustable 68°F to 122°F
• Preset at 41°F to heat - adjustable -4°F to 122°F
• Temperature differential hysteresis 5.4°F
• High temp alarm Preset 131°F
• High performance ball bearing fans
• Door activated switch wiring provisions provided for easy installation
• Cage clamp terminal connector
• Oil and water resistant gaskets installed

Application

Finish

Industry Standards - (IS19)

• NEMA Type 3R, 4 and 12
• UL Recognized Type 3R, 4 and 12
• IEC 60529
• IP 56

Notes
