SCE-9PBXI    | NEMA 12, 4 | PBXI Enclosure, 10H x 9W x 5D  |   Saginaw
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SaginawSKU: SCE-9PBXI

Web Price:

$111.54
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
FREIGHT DAMAGE POLICY
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

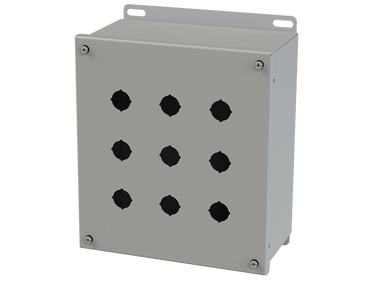

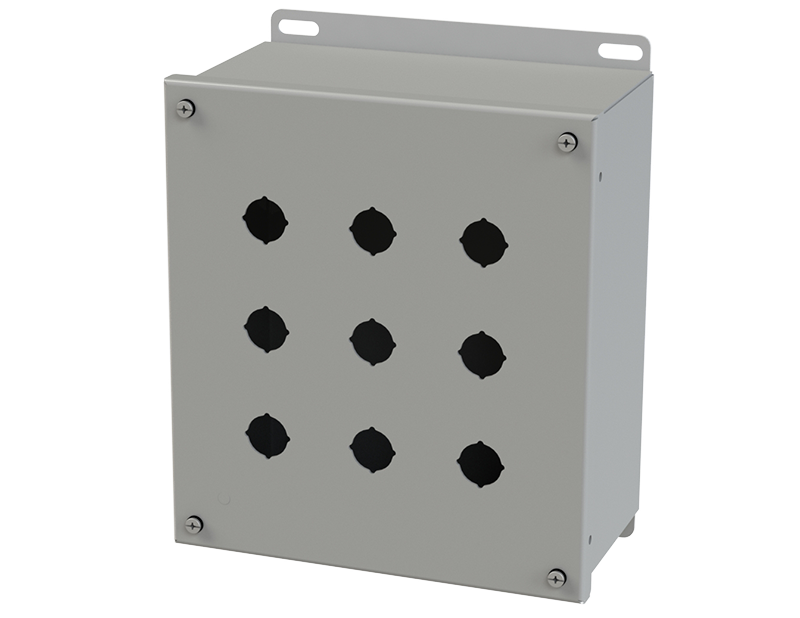

SCE-9PBXI | NEMA 12, 4 | PBXI Enclosure, 10H x 9W x 5D | Saginaw

Saginaw | SCE-9PBXI
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-9PBXI

Overview

Details for SCE-9PBXI

NEMA 12, 4 | PBXI Enclosure, 10H x 9W x 5D

Construction

  • 0.063 In. carbon steel.
  • Continuously welded seams.
  • Captivated cover screws thread into sealed wells.
  • 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 0.87 In. (22.5mm).
  • Immediate removal of cover is still permitted.
  • Pour in place oil and water resistant gasket
  • Welded mounting provision top and bottom of back.

Application

Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.

Finish

ANSI-61 gray powder coating inside and out.

Industry Standards - (IS2)

  • NEMA Type 4, 12 and Type 13
  • UL Listed Type 4 and 12
  • CSA Type 4 and 12
  • IEC 60529
  • IP 66

Specifications

Item Number SCE-9PBXI
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 5
Enclosure Height (IN) 10
Enclosure Type PBXI Enclosure
Enclosure Width (IN) 9
