SCE-9PBHSS6 | NEMA 12, 4, 4X | S.S. PB Enclosure, 10H x 10W x 6D | Saginaw

Brand: SaginawSKU: SCE-9PBHSS6
Saginaw | SCE-9PBHSS6

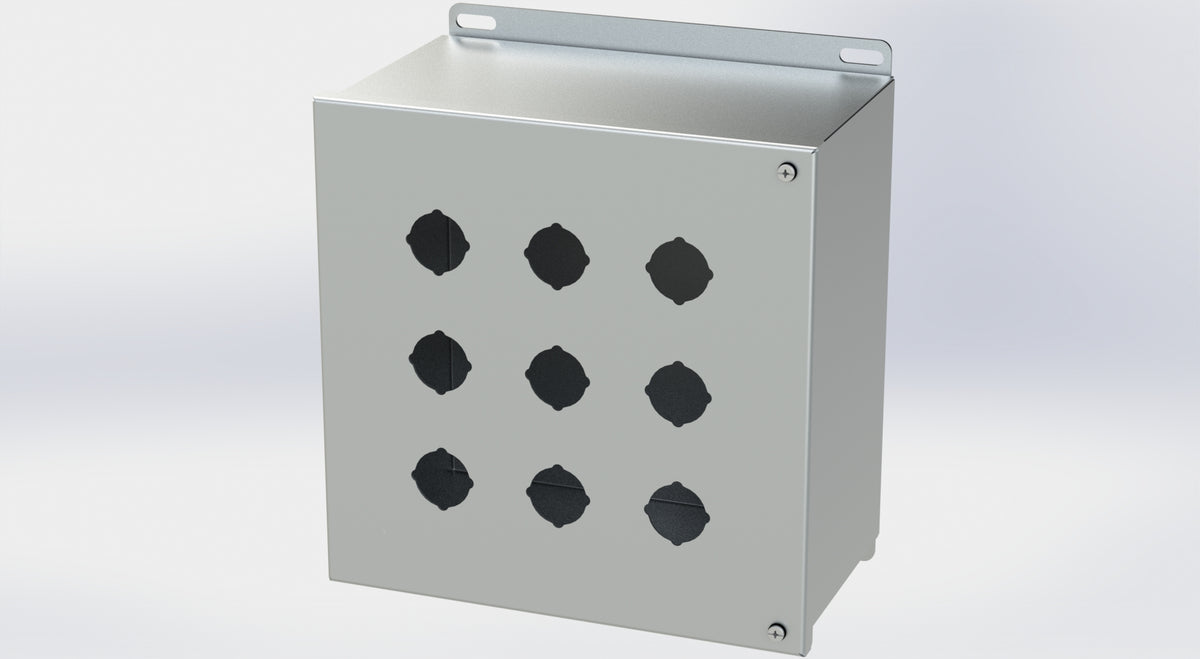

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-9PBHSS6
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-9PBHSS6

Construction

  • 0.063 In. stainless steel type 316/316L.
  • Seams continously welded and ground smooth.
  • Captivated cover screws thread into sealed wells.
  • 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights. Hole diameter is 1.20 In. (30.5 mm).
  • Pour in place oil and water resistant gasket
  • Provisions for sub-panel.
  • Ground stud on door.
  • Cover attached with continuous hinges.
  • Welded mounting provision top and bottom of back.

Application

Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS5)

  • NEMA Type 4, 4X, 12 and Type 13
  • UL Listed Type 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Specifications

Item Number SCE-9PBHSS6
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 6
Enclosure Height (IN) 10
Enclosure Type S.S. PB Enclosure
Enclosure Width (IN) 10
