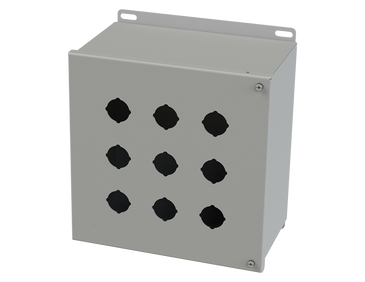

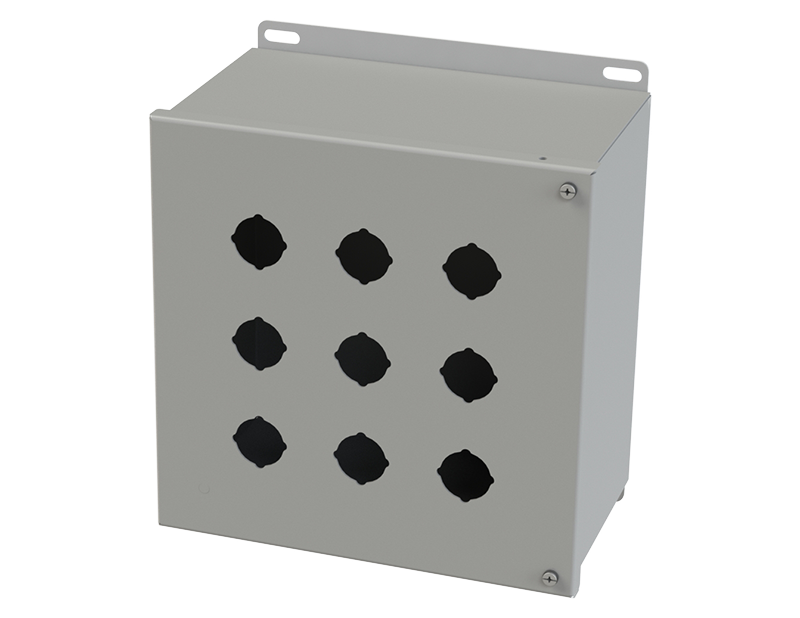

SCE-9PBH | NEMA 12, 4 | Hinged PB Enclosure, 10H x 10W x 6D | Saginaw

Brand: SaginawSKU: SCE-9PBH

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for SCE-9PBH

Construction

0.063 In. carbon steel.
Continuously welded seams.
Captivated cover screws thread into sealed wells.
4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
Bolt-on continuous hinge with stainless steel hinge pin.
Provisions for removable subpanel, supported by standoffs.
Ground stud on door.
Pour in place oil and water resistant gasket
Welded mounting provision top and bottom of back.

Application

Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS2)

Notes

Add ''I'' to catalog number to receive with 22.5mm hole diameter
