SCE-9KJ0804SSST | S.S. Sanitary Sloping Top Junction Enclosure | Saginaw

Brand: SaginawSKU: SCE-9KJ0804SSST

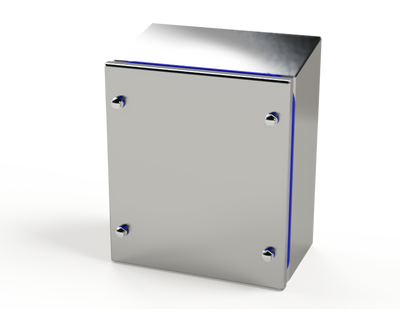

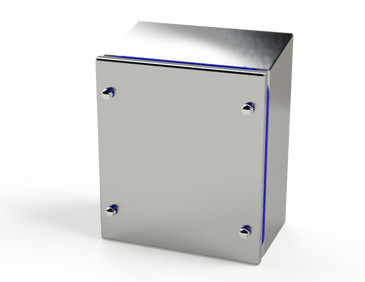

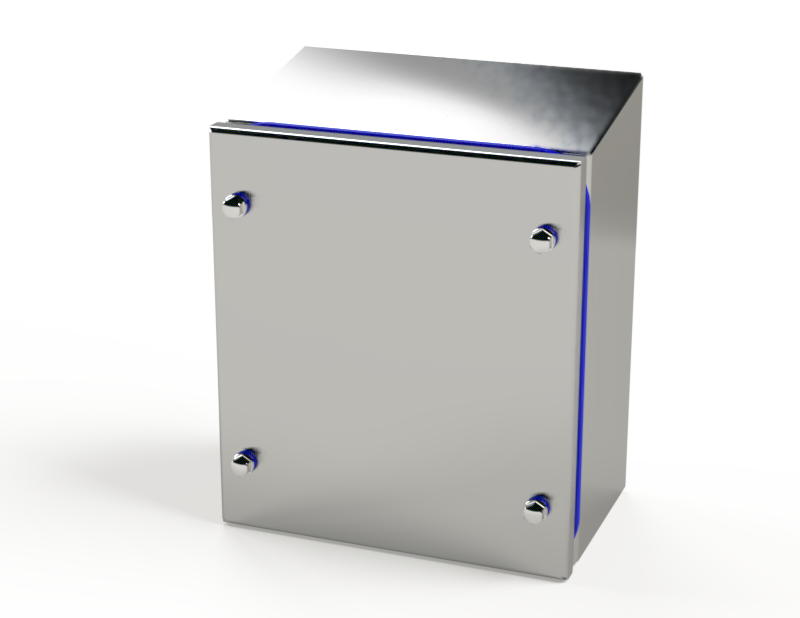

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-9KJ0804SSST

Jump to: Overview & Specifications Reviews

Overview Details for SCE-9KJ0804SSST

Construction

0.063 In. stainless steel Type 304
Seams continuously welded and ground smooth
10 degree sloped top
Sanitary fasteners with FDA - Grade silicone gasket
Pour in place oil and water resistant gasket
FDA - Grade silicone gasket
Provision for mounting optional panels
Ground stud on door and body
Solid back with no mounting holes makes it easy to add weld mounting stand-off
DIN 40050-9 IP69K
ANSI 3-A 00-01 Sanitary Standard for General Requirements
NSF 169 Special Purpose Food Equipment and Devices

Application

Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food and Beverage industry. Screw Cover enclosures provide maximal back panel space, and dual-gasket design that ensures its performance in extreme applications. Dual-gasket includes an inner pour-in-place oil and water-resistant gasket as well as an easily replaceable outer gasket that is a FDA-grade silicone that helps resist growth and chemical absorption.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

# 4 Brushed finish 25-35 RA suitable for medical and food industry.

Industry Standards - (IS25)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 69
