SCE-924B | NEMA 3R, 12 | Console (Series 9), 48H x 24W x 18D | Saginaw

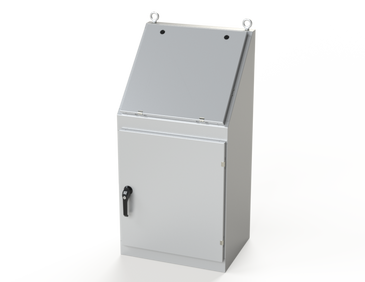

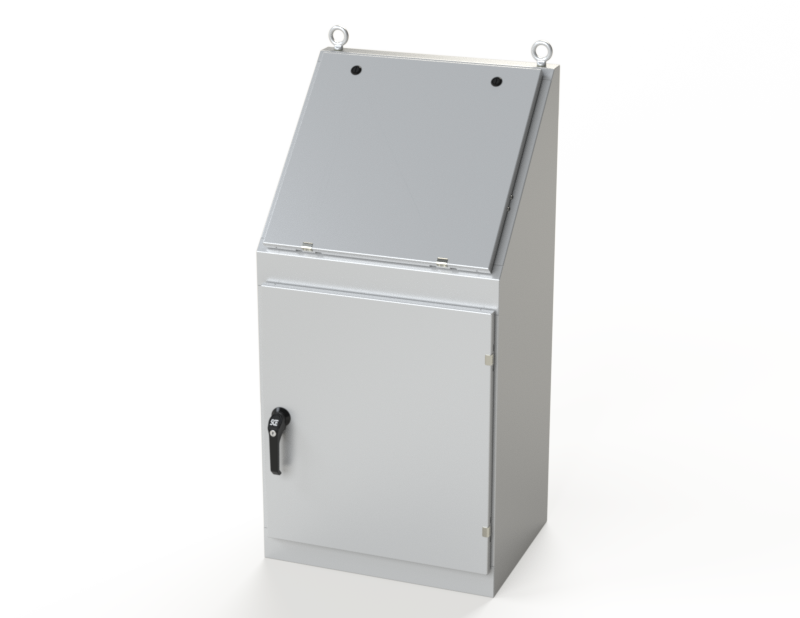

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-924B

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Saginaw SCE-924B Documents

FREIGHT DAMAGE POLICY CAD Package Sub-Plate Layout & Grounding for 3/8-16 More Info

Overview

Details for SCE-924B

NEMA 3R, 12 | Console (Series 9), 48H x 24W x 18D

Construction

0.075 In. carbon steel.
Sloping control panel attached with concealed hinge on bottom edge.
Door opens to 90 degrees.
Black zinc die cast keylocking/padlocking handle.
3-point latching mechanism.
Seams continuously welded and ground smooth.
Pour in place oil and water resistant gasket
Interior print pocket.
Optional back and side panels are mounted on collar studs.
Removable eyebolts.
Ground stud on door.

Application

Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Provides protection from dirt, oil, dust and water.

Finish

ANSI-61 gray powder coat inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS3)

NEMA Type 3R, 12 and Type 13
UL Listed Type 3R and 12
CSA Type 3R and 12
IEC 60529
IP 55

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-924B
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
Enclosure Depth (IN)	18
Enclosure Height (IN)	48
Enclosure Type	Console (Series 9)
Enclosure Width (IN)	24
