SCE-8R66 | NEMA 3R | Type-3R Screw Cover Enclosure, 8H x 6W x 6D | Saginaw

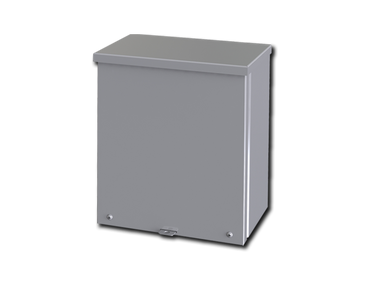

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-8R66

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Saginaw SCE-8R66 Documents

FREIGHT DAMAGE POLICY CAD Package Nema 3R Mounting Straps Drip Shield Kit Assembly More Info

Overview

Details for SCE-8R66

NEMA 3R | Type-3R Screw Cover Enclosure, 8H x 6W x 6D

Construction

0.048 In. Galvannealed steel
Spot weld construction.
Rain cap.
Mounting hole in back of enclosure.
Slip on removable screw cover.
Padlocking provisions.
No gasket.
No subpanel or provisions.
Ground studs on door and body.

Application

Designed to house electrical controls, instruments and components in an outdoor environment. Protects against rain, sleet and snow.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out.

Industry Standards - (IS7)

NEMA Type 3R
UL Listed Type 3R
CSA Type 3R
IEC 60529
IP 32

Specifications

Item Number	SCE-8R66
Brand	Saginaw
1 Enclosure Rating	NEMA 3R
Enclosure Depth (IN)	6
Enclosure Height (IN)	8
Enclosure Type	Type-3R Screw Cover Enclosure
Enclosure Width (IN)	6
