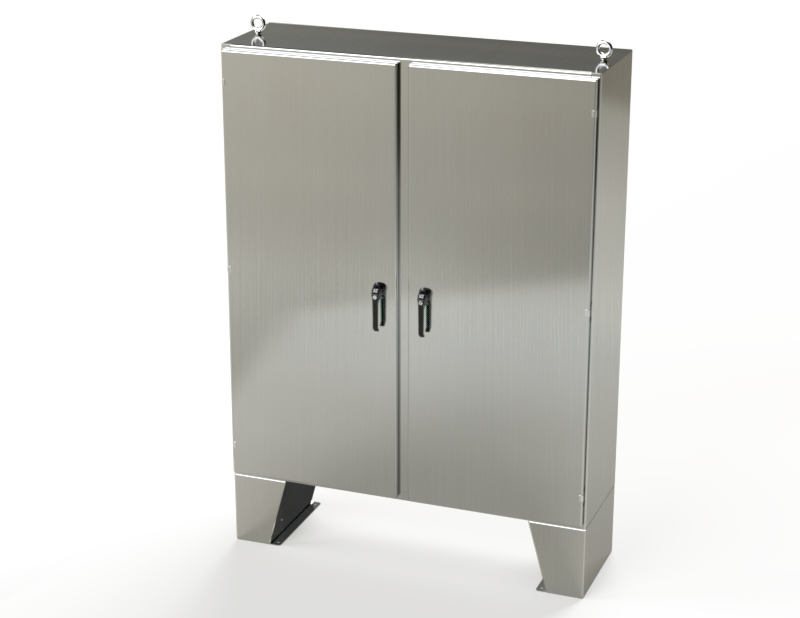

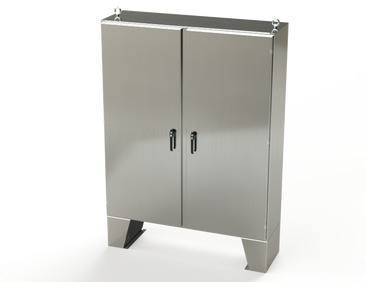

SCE-72EL6018SS6LPPL | NEMA 3R, 12, 4, 4X | S.S. 2DR EL LPPL Enclosure, 72H x 60W x 18D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-72EL6018SS6LPPL
Overview Details for SCE-72EL6018SS6LPPL
Construction
- 0.104 In. stainless steel Type 316/316L.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Removable center post.
- Heavy duty lifting eyes anchor into reinforced top.
- Body stiffeners.
- Stainless steel concealed hinge.
- Black key locking padlocking handles.
- 3-point latching mechanism.
- Removable print pocket.
- 12 inch removable floor stands.
- Panel supports.
- Provision for mechanical interlock.
- Pour in place oil and water resistant gasket
- Ground stud on door and body.
- Provisions for light kit.
- Collar studs 3/8-16 provided for mounting optional panels.
Application
Designed to house electrical and electronic controls, instrumentation and components in indoor and outdoor locations. For outdoor application a drip shield and drain vent is recommended.
For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
Specifications
| Item Number | SCE-72EL6018SS6LPPL |
| Brand | Saginaw |
| 1 Enclosure Rating | NEMA 12 |
| 1 Enclosure Rating | NEMA 3R |
| 1 Enclosure Rating | NEMA 4 |
| 1 Enclosure Rating | NEMA 4X |
| Enclosure Depth (IN) | 18 |
| Enclosure Height (IN) | 72 |
| Enclosure Type | S.S. 2DR EL LPPL Enclosure |
| Enclosure Width (IN) | 60 |
