SCE-72EL6012SS6ST | S.S. 2DR EL Sloping Top Enclosure | Saginaw

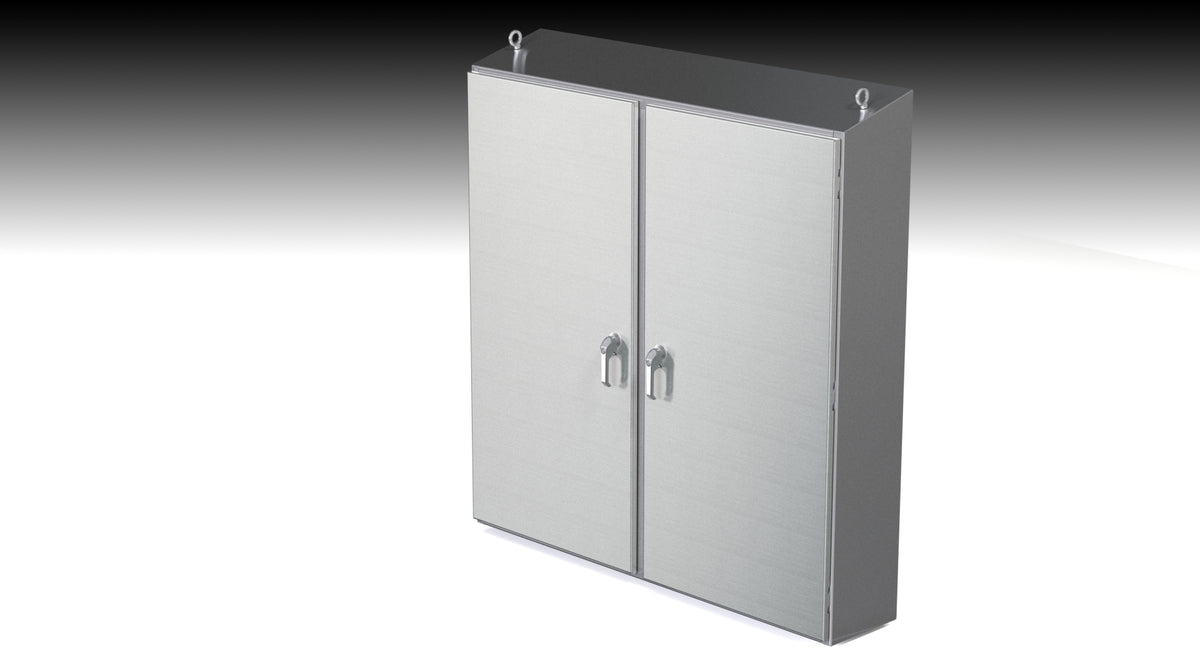

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-72EL6012SS6ST

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-72EL6012SS6ST Documents

FREIGHT DAMAGE POLICY Service Parts Free Standing & Floor Mount Enclosures Center Channel Re-Install More Info

Overview

Details for SCE-72EL6012SS6ST

S.S. 2DR EL Sloping Top Enclosure

Construction

0.104 in stainless steel Type 316.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
15 degree sloping top.
Removable center post.
Heavy duty lifting eyes anchor into reinforced top.
Body stiffeners.
Black quarter turn latches as required.
Stainless steel concealed hinges.
Stainless Steel padlocking handles.
3-point latching mechanism.
Removable print pocket.
Provisions for floor stands.
Panel supports.
Ground stud on door and body.
Provisions for light kit.
Pour in place oil and water resistant gasket.
Collar studs 3/8-16 provided for mounting optional panels.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor, outdoor and sanitary locations.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

316 brushed finish on all exterior surfaces.
Optional sub-panels powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-72EL6012SS6ST
Brand	Saginaw
Enclosure Depth (IN)	12
Enclosure Height (IN)	72
Enclosure Rating	NEMA 12
Enclosure Rating	NEMA 3R
Enclosure Rating	NEMA 4
Enclosure Rating	NEMA 4X
Enclosure Width (IN)	60
