SCE-72EL2430FSDA | NEMA 3R, 12, 4 | FSDA Enclosure, 72H x 24W x 30D | Saginaw

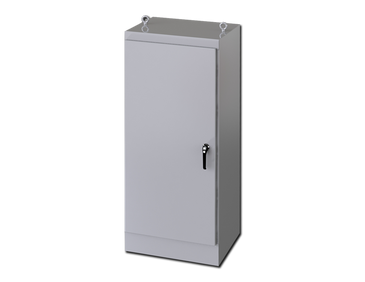

Saginaw | SCE-72EL2430FSDA

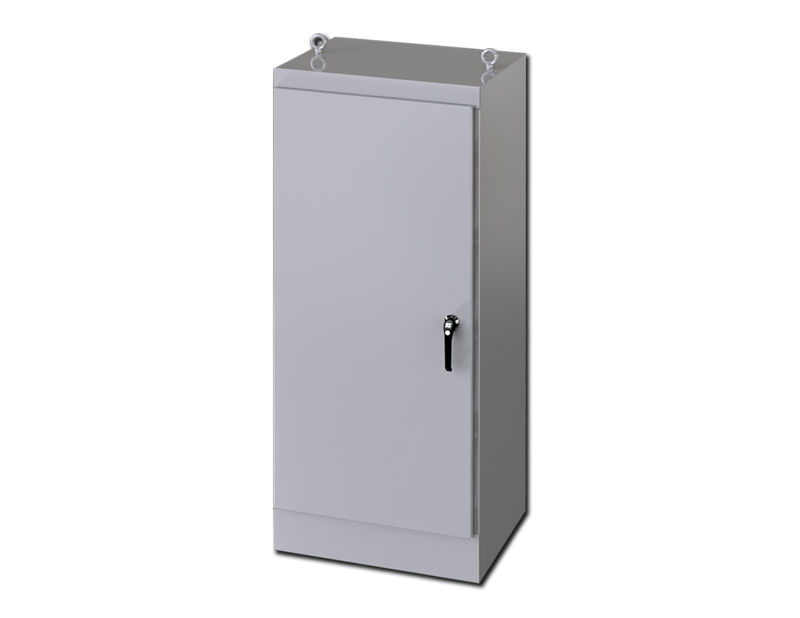

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-72EL2430FSDA

Overview

Details for SCE-72EL2430FSDA

NEMA 3R, 12, 4 | FSDA Enclosure, 72H x 24W x 30D

Construction

  • 0.104 In. carbon steel
  • Single-Door Dual Access.
  • Seams continuously welded and ground smooth.
  • Lifting eyes for easy handling.
  • Black zinc die cast keylocking/padlocking handle.
  • 3-point latching mechanism.
  • Latch rods have ramp shoes for easier door closing.
  • Concealed hinges.
  • Flange trough collar around all sides of door opening.
  • Removable print pocket provided on door.
  • Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
  • Pour in place oil and water resistant gasket
  • Ground stud on door and body.
  • Removable and interchangeable doors.
  • Provisions for light kit.

Application

Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coat inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66

Notes

Part numbers that contain the letter "EL" that are over 30 inches wide have additional latches on the center of the door top and bottom.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-72EL2430FSDA
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 30
Enclosure Height (IN) 72
Enclosure Type FSDA Enclosure
Enclosure Width (IN) 24
