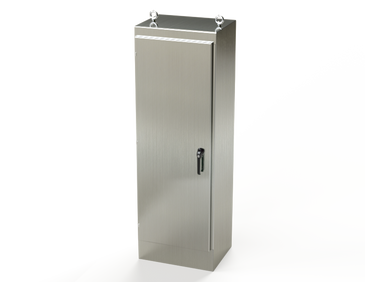

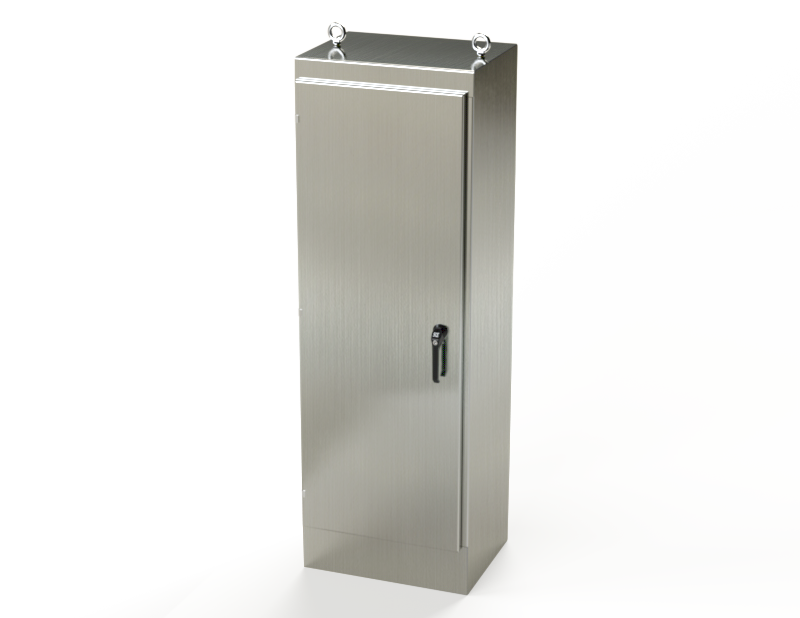

SCE-72EL2418SS6FS | NEMA 3R, 12, 4, 4X | S.S. EL FS Enclosure, 72H x 24W x 18D | Saginaw

Construction

• 0.104 In. stainless steel Type 316/316L.
• Seams continuously welded and ground smooth.
• Pour in place oil and water resistant gasket
• Flange trough collar around all sides of door opening.
• Concealed hinges.
• Removable and interchangeable doors.
• Black quarter turn latches.
• Removable print pocket.
• Lifting eyes for easy handling.
• Ground studs on door and body.
• Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
• No door stiffeners required.
• Provisions for light kit.
• Black zinc die cast keylocking/padlocking handle. 3-point latching mechanism. Latch rods have ramp shoes for easier door closing.

Application

Finish

Industry Standards - (IS6)

• NEMA Type 3R, 4, 4X, 12 and Type 13
• UL Listed Type 3R, 4, 4X and 12
• CSA Type 4, 4X and 12
• IEC 60529
• IP 66
