SCE-6PBXVL | PBX Enclosure | Saginaw

Saginaw | SCE-6PBXVL
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-6PBXVL
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Saginaw SCE-6PBXVL Documents

FREIGHT DAMAGE POLICYCAD PackagePushbutton EnclosuresSub-Plate Layout & Grounding for 10-32 More Info

Overview

Details for SCE-6PBXVL

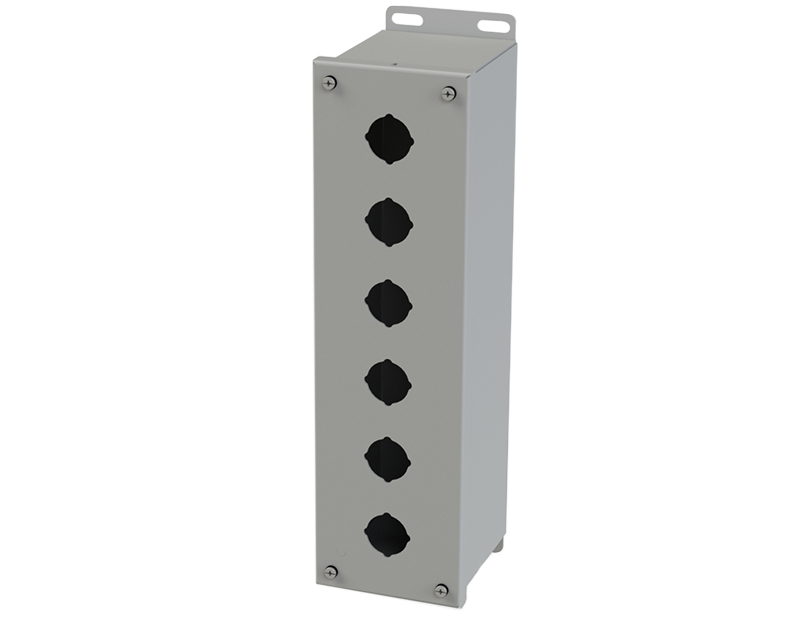

PBX Enclosure

Construction

  • 0.063 In. carbon steel
  • Continuously welded seams
  • Captivated cover screws thread into sealed wells
  • 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
  • Immediate removal of cover is still permitted
  • Pour in place oil and water resistant gasket
  • Welded mounting provision top and bottom of back

Application

Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.

Finish

ANSI-61 gray powder coating inside and out.

Industry Standards - (IS2)

  • NEMA Type 4, 12 and Type 13
  • UL Listed Type 4 and 12
  • CSA Type 4 and 12
  • IEC 60529
  • IP 66

Notes

Add ''I'' to catalog number to receive with 22.5mm hole diameter

Specifications

Item Number SCE-6PBXVL
Brand Saginaw
Enclosure Depth (IN) 5
Enclosure Height (IN) 15
Enclosure Rating NEMA 12
Enclosure Rating NEMA 4
Enclosure Width (IN) 4
