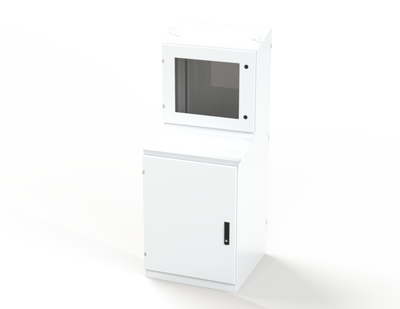

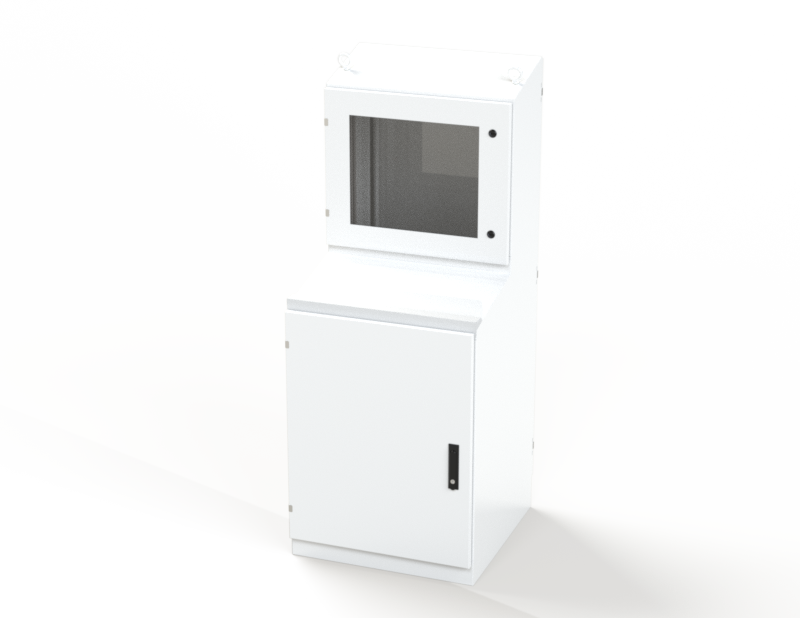

SCE-66ST2626WS | Workstation, Sloped Top | 65.59 (H) x 26 (W) x 26 (D) | Saginaw

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-66ST2626WS

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-66ST2626WS Documents

FREIGHT DAMAGE POLICY CAD Package Pull-Out Shelf Assembly Monitor Mounting Bracket Panel Supports for Sub-Plate Installation More Info

Overview

Details for SCE-66ST2626WS

Workstation, Sloped Top | 65.59 (H) x 26 (W) x 26 (D)

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
15 degree sloped top.
12.5 degree sloped keyboard desk.
Pour in place oil and water resistant gasket
Flange trough collar around all sides of door opening.
Concealed hinges.
Removable doors.
Ground studs on door and body.
Large polycarbonate viewing window in top door.
Lifting eyes for easy handling.
Rubber pads with provision for leveling pads on bottom of enclosure.
Black quarter turn latches on top door.
Black 3-point flush swing handle in lower front and back doors.
Gland plate on lower back of enclosure.
Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.
Provisions for Monitor Mounting Strap System.
Pencil edge palm rest.

Application

Designed to house a computer, keyboard, monitor and other additional computer equipment in an industrial environment or an environment which may be regularly hosed down or in very wet or oily conditions. Provides protection from dust, dirt, water and oil.

Finish

Powder coated white inside and out.

Industry Standards - (IS1)

NEMA Type 12 and Type 13
UL Listed Type 12
CSA Type 12
IEC 60529
IP 55
