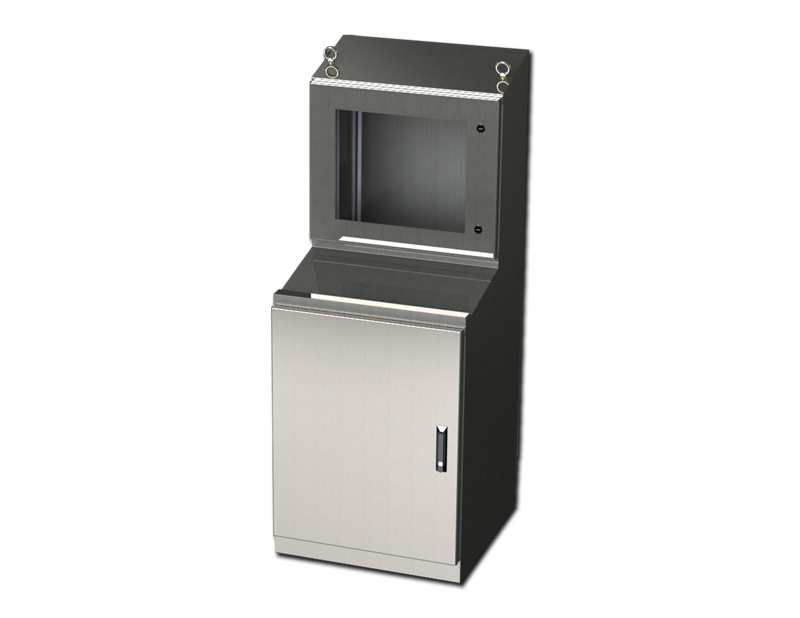

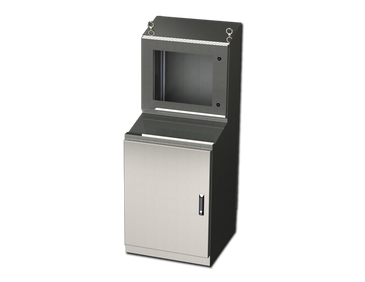

SCE-66ST2626SSWS | NEMA 12 | S.S. Workstation, Sloped Top, 66H x 26W x 26D | Saginaw

Brand: SaginawSKU: SCE-66ST2626SSWS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-66ST2626SSWS

Jump to: Overview & Specifications Reviews

Overview Details for SCE-66ST2626SSWS

Construction

0.075 In. stainless steel Type 304.
Seams continuously welded and ground smooth.
15 degree sloped top.
12.5 degree sloped keyboard desk
Pour in place oil and water resistant gasket
Flange trough collar around all sides of door opening.
Concealed hinges.
Removable doors.
Ground studs on door and body.
Large polycarbonate viewing window in top door.
Lifting eyes for easy handling.
Rubber pads with provision for leveling pads on bottom of enclosure.
Black quarter turn latches on top door.
Black 3-point flush swing handle in lower front and back doors.
Gland plate on lower back of enclosure.
Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.
Monitor shelf for Slope Top WS.
Provisions for Monitor Mounting Strap System.
Pencil edge palm rest.

Application

Designed to house a computer, keyboard, monitor and other additional computer equipment in an industrial environment or an enviroment which may be regularly hosed down or in very wet or oily conditions. Provides protection from dust, dirt, water and oil. Stainless steel work stations resist corrosion.

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS1)

NEMA Type 12 and Type 13
UL Listed Type 12
CSA Type 12
IEC 60529
IP 55

Specifications

Item Number	SCE-66ST2626SSWS
Brand	Saginaw
1 Enclosure Rating	NEMA 12
Enclosure Depth (IN)	26
Enclosure Height (IN)	66
Enclosure Type	S.S. Workstation
Enclosure Width (IN)	26
