SCE-642432WS | NEMA 12 | Workstation, 64H x 24W x 32D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-642432WS
Documents and manuals
Overview
Details for SCE-642432WS

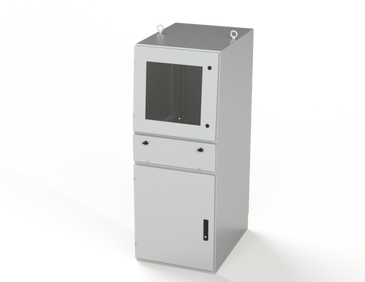

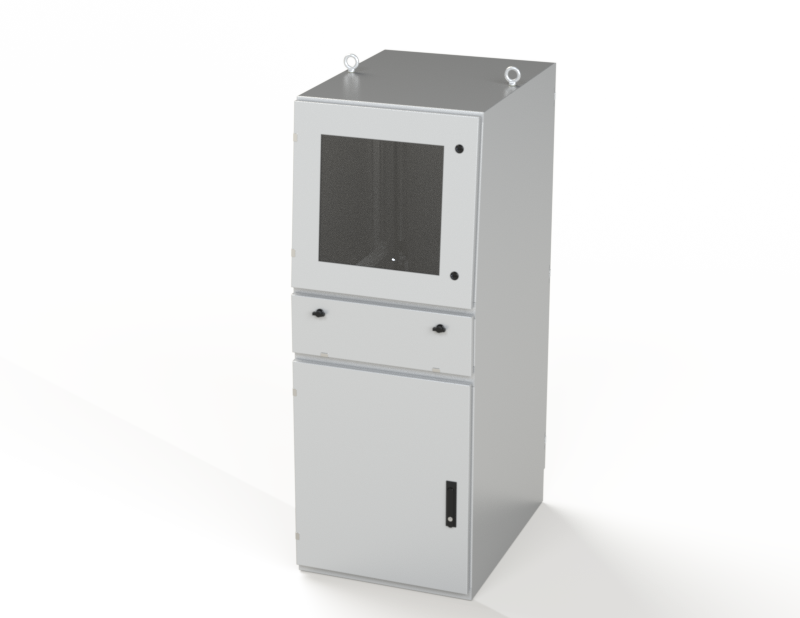

NEMA 12 | Workstation, 64H x 24W x 32D
Construction
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Pour in place oil and water resistant gasket
- Flange trough collar around all sides of door opening.
- Concealed hinges.
- Removable doors.
- Ground studs on door and body.
- Large polycarbonate viewing window in top door.
- Lifting eyes for easy handling.
- Rubber pads with provision for leveling pads on bottom of enclosure.
- Black, quarter turn latches on top door.
- Black, quarter turn wing knob latches.
- Black 3-point key locking flush swing handle in lower front and back doors.
- Gland plate on lower back of enclosure.
- Pull out keyboard shelf with attached self storing mouse shelf and mouse pad.
- Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.
Application
Designed to house a computer, keyboard, monitor and other additional computer equipment in an industrial environment and provide protection from dust, oil and moisture.
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
RAL 7035 gray powder coating inside and out.
Industry Standards - (IS1)
- NEMA Type 12 and Type 13
- UL Listed Type 12
- CSA Type 12
- IEC 60529
- IP 55
Notes
Optional panels and accessories are available.
Specifications
Item Number | SCE-642432WS |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
Enclosure Depth (IN) | 32 |
Enclosure Height (IN) | 64 |
Enclosure Type | Workstation |
Enclosure Width (IN) | 24 |
