SCE-642424SSWS | NEMA 12 | S.S. Workstation, 64H x 24W x 24D | Saginaw

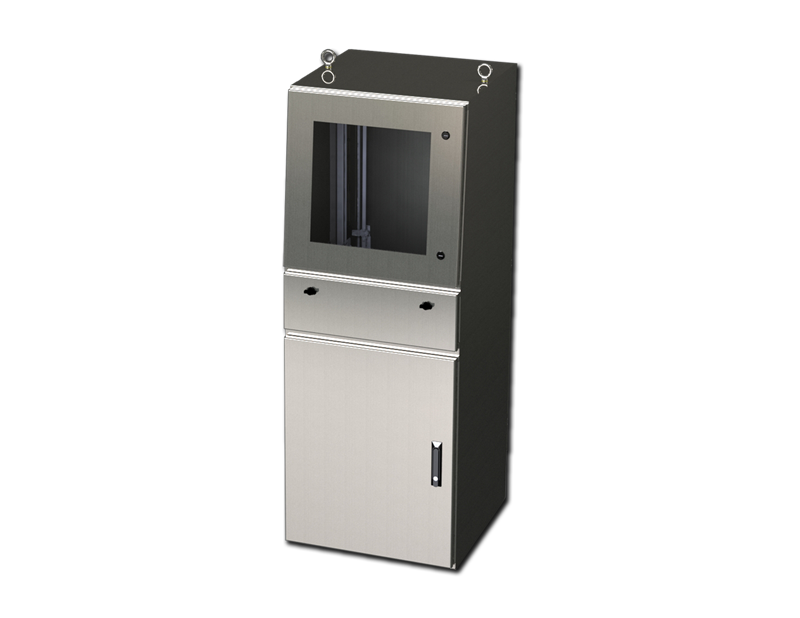

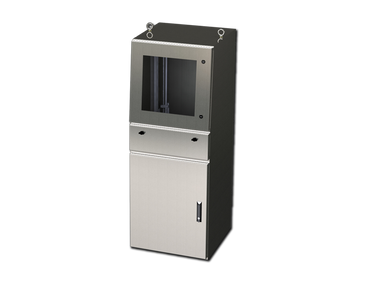

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-642424SSWS
Documents and manuals
Overview
Details for SCE-642424SSWS
NEMA 12 | S.S. Workstation, 64H x 24W x 24D
Construction
- 0.075 In. stainless steel Type 304.
- Seams continuously welded and ground smooth.
- Pour in place oil and water resistant gasket
- Flange trough collar around all sides of door opening.
- Concealed hinges.
- Removable doors.
- Ground studs on door and body.
- Large polycarbonate viewing window in top door
- Lifting eyes for easy handling.
- Rubber pads with provision for leveling pads on bottom of enclosure.
- Black, quarter turn latches on top door.
- Black, quarter turn wing knob latches on keyboard door.
- Black 3-point flush swing handle in back door.
- Gland plate on lower back of enclosure
- Pull out keyboard shelf with attached self storing mouse shelf and mouse pad.
- Mounting channels welded on sides of interior body for mounting optional panels, racks, mounting angles and shelves.
Application
Designed to house a computer, keyboard, monitor and other additional computer equipment in an industrial environment and provide protection from dust, oil and moisture. Stainless steel work stations resist corrosion.
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
Industry Standards - (IS1)
- NEMA Type 12 and Type 13
- UL Listed Type 12
- CSA Type 12
- IEC 60529
- IP 55
Notes
Optional panels and accessories are available.
Specifications
Item Number | SCE-642424SSWS |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
Enclosure Depth (IN) | 24 |
Enclosure Height (IN) | 64 |
Enclosure Type | S.S. Workstation |
Enclosure Width (IN) | 24 |
