SCE-60XEL6118SS6LP | NEMA 3R, 12, 4, 4X | S.S. 2DR XEL Enclosure, 60H x 61W x 18D | Saginaw

Brand: SaginawSKU: SCE-60XEL6118SS6LP
Saginaw | SCE-60XEL6118SS6LP

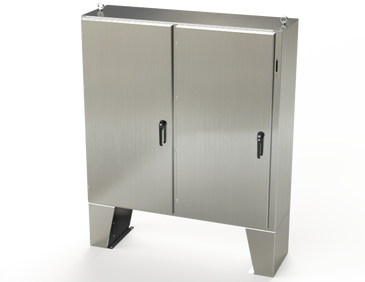

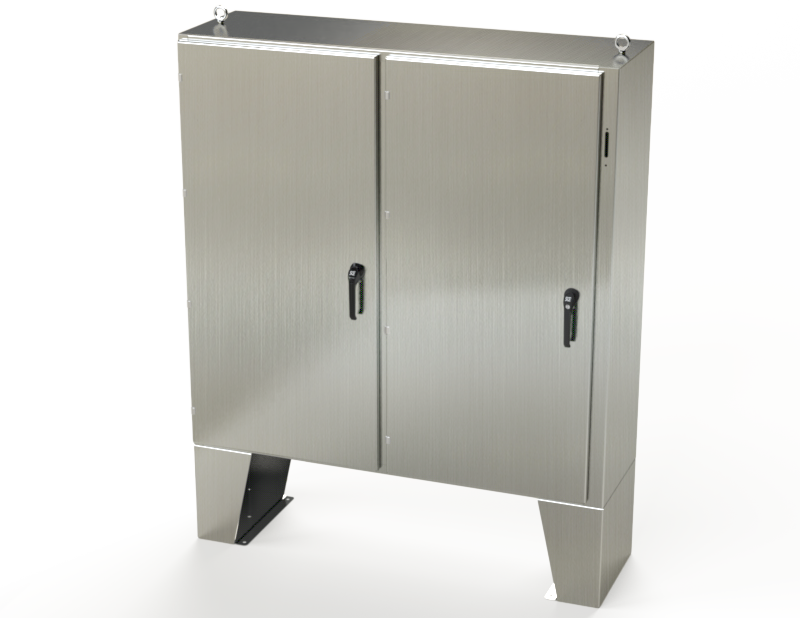

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-60XEL6118SS6LP
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-60XEL6118SS6LP

Construction

  • 0.104 In. stainless steel Type 316/316L.
  • Seams continuously welded and ground smooth.
  • Pour in place oil and water resistant gasket
  • Flange trough collar around all sides of door opening.
  • Stainless steel concealed hinges.
  • Removable and interchangeable doors.
  • 3-point latching mechanism.
  • Removable print pocket.
  • Lifting eyes for easy handling.
  • Ground studs on door and body.
  • Collar studs 3/8-16 provided for mounting optional panels.
  • 15 In. removable floor stands.
  • Removable center post.
  • Mechanical interlock.
  • No door stiffeners required.
  • Black zinc die cast coinproof/padlocking handle on main door of disconnect enclosures. Black zinc die cast padlocking handle on all other doors.
  • Provisions for light kit.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor and outdoor locations. Designed to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-60XEL6118SS6LP
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 18
Enclosure Height (IN) 60
Enclosure Type S.S. 2DR XEL Enclosure
Enclosure Width (IN) 61
