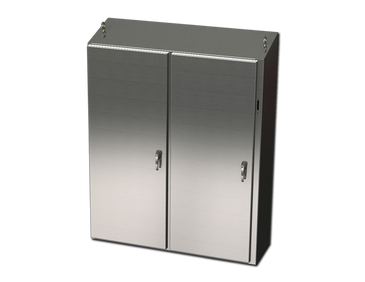

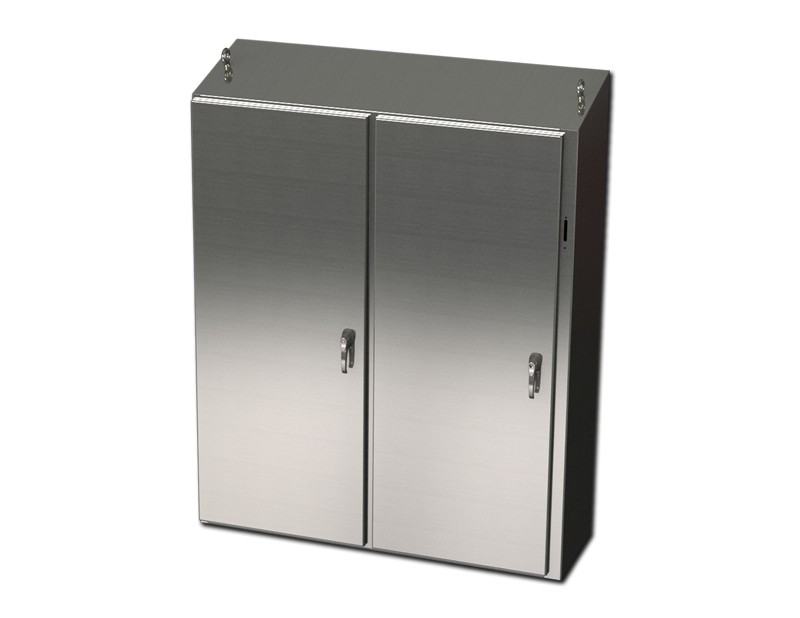

SCE-60XEL4912SS6ST | S.S. 2DR XEL Sloping Top Enclosure | Saginaw

Brand: SaginawSKU: SCE-60XEL4912SS6ST

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-60XEL4912SS6ST

Jump to: Overview & Specifications Reviews

Overview Details for SCE-60XEL4912SS6ST

Construction

0.104 In. stainless steel Type 304.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
15 degree sloping top.
Removable center post.
Heavy duty lifting eyes anchor into reinforced top.
Body stiffeners.
Stainless steel concealed hinges.
Mechanical interlock.
Stainless Steel coinproof/padlocking handle on main door with Stainless Steel padlocking handle on slave doors.
3-point latching mechanism.
Removable print pocket on main door of disconnect enclosures.
Provisions for floor stands.
Panel supports.
Pour in place oil and water resistant gasket
Ground stud on door and body.
Provisions for light kit.
Collar studs 3/8-16 provided for mounting optional panels.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor, outdoor and sanitary locations. Designed to house most standard type disconnects.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with this enclosure.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-60XEL4912SS6ST
Brand	Saginaw
Enclosure Depth (IN)	12
Enclosure Height (IN)	60
Enclosure Rating	NEMA 12
Enclosure Rating	NEMA 3R
Enclosure Rating	NEMA 4
Enclosure Rating	NEMA 4X
Enclosure Width (IN)	49
