SCE-60XEL3716SSST | NEMA 3R, 12, 4, 4X | S.S. XEL Sloping Top Enclosure, 60H x 37W x 16D | Saginaw

Brand: SaginawSKU: SCE-60XEL3716SSST
Saginaw | SCE-60XEL3716SSST

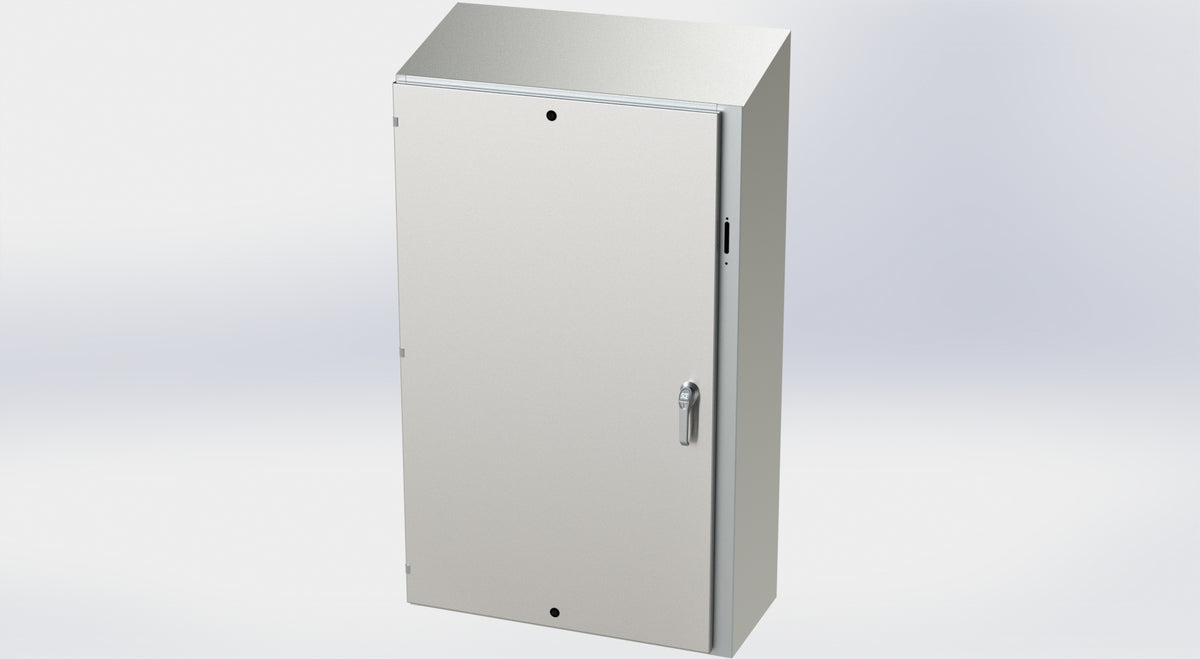

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-60XEL3716SSST
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-60XEL3716SSST

Construction

  • 0.075 In. stainless steel Type 304.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • 15 degree sloping top.
  • Stainless Steel concealed hinges.
  • Stainless Steel coinproof/padlocking handle.
  • 3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches.
  • Removable print pocket on main door of disconnect enclosures.
  • Pour in place oil and water resistant gasket
  • Ground stud on door and body.
  • Collar studs 3/8-16 provided for mounting optional panels.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor, outdoor and sanitary locations. Designed to house most standard type disconnects.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

# 4 Brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with this enclosure

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-60XEL3716SSST
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 16
Enclosure Height (IN) 60
Enclosure Type S.S. XEL Sloping Top Enclosure
Enclosure Width (IN) 37
