SCE-60EL6018LPPL | NEMA 3R, 12, 4 | 2DR EL LPPL Enclosure, 60H x 60W x 18D | Saginaw

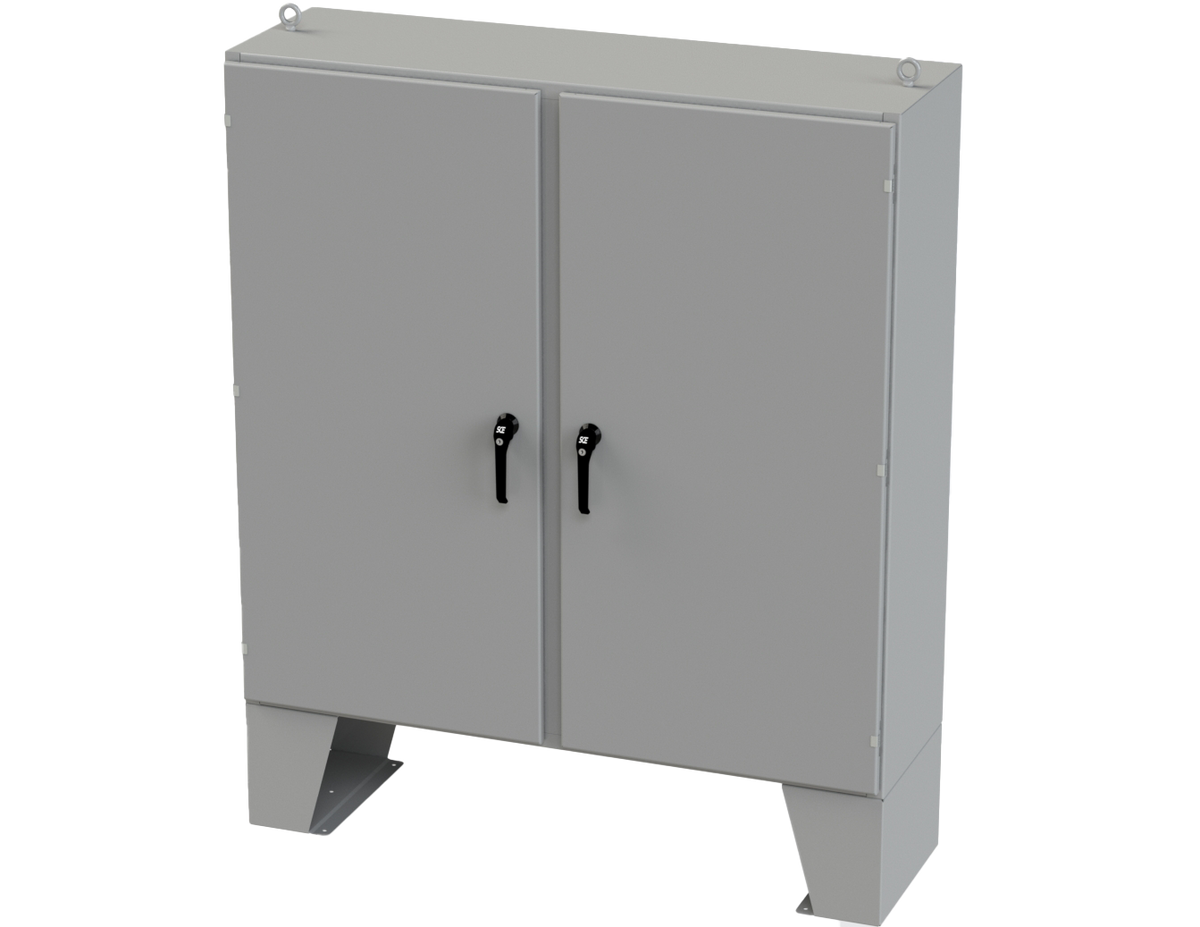

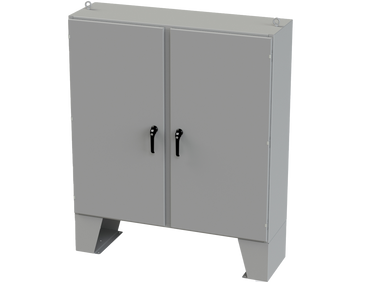

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-60EL6018LPPL

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Saginaw SCE-60EL6018LPPL Documents

FREIGHT DAMAGE POLICY CAD Package Mechanical Interlock Folding Shelf Hole Pattern Drip Shield Kit Assembly Dead Front 2 Door W/Center Post Installation Instructions LED Light Fixture Hole Seal Service Parts Free Standing & Floor Mount Enclosures Hole Seal Center Channel Re-Install Design Considerations When Specifying Your Enclosure Sub-Plate Layout & Grounding for 3/8-16 More Info

Overview

Details for SCE-60EL6018LPPL

NEMA 3R, 12, 4 | 2DR EL LPPL Enclosure, 60H x 60W x 18D

Construction

0.104 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Removable centerpost.
Heavy duty lifting eyes anchored into reinforced top.
Body stiffeners.
Concealed hinges.
Black keylocking padlocking handles.
3-point latching mechanism.
Removable print pocket.
12 In. removable floor stands.
Panel Supports.
Provisions for mechanical interlock.
Pour in place oil and water resistant gasket
Ground stud on door and body.
Provisions for light kit.
Hole plugs provided to seal holes in bottom of enclosure.
Collar studs 3/8-16 provided for mounting optional panels.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor and outdoor locations. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-60EL6018LPPL
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	18
Enclosure Height (IN)	60
Enclosure Type	2DR EL LPPL Enclosure
Enclosure Width (IN)	60
