SCE-606SC | NEMA 3R, 12, 4 | SC Enclosure, 6H x 6W x 4D | Saginaw

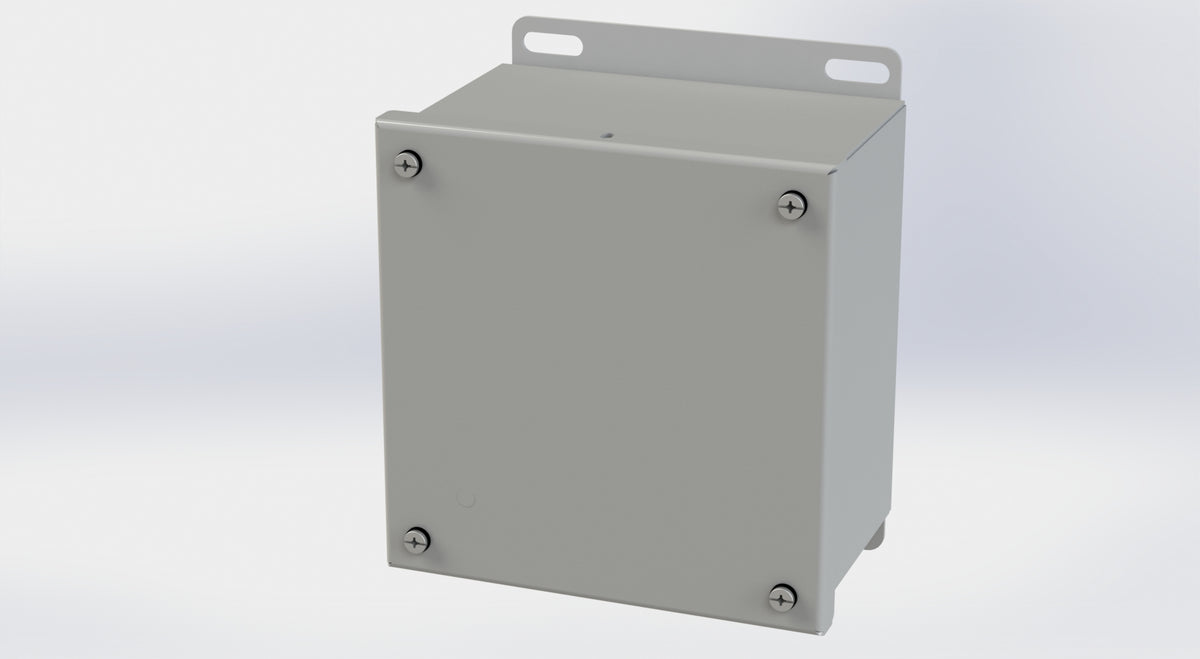

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-606SC
Documents and manuals
Saginaw SCE-606SC Documents
Overview
Details for SCE-606SC
NEMA 3R, 12, 4 | SC Enclosure, 6H x 6W x 4D
Construction
- 0.063 In. carbon steel.
- Seams continuously welded and ground smooth, no holes or knock-outs.
- Captivated cover screws thread into sealed wells.
- Pour in place oil and water resistant gasket
Application
Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. Provides protection from dust, oil and water.
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS4)
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
Specifications
Item Number | SCE-606SC |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
1 Enclosure Rating | NEMA 3R |
1 Enclosure Rating | NEMA 4 |
Enclosure Depth (IN) | 4 |
Enclosure Height (IN) | 6 |
Enclosure Type | SC Enclosure |
Enclosure Width (IN) | 6 |
