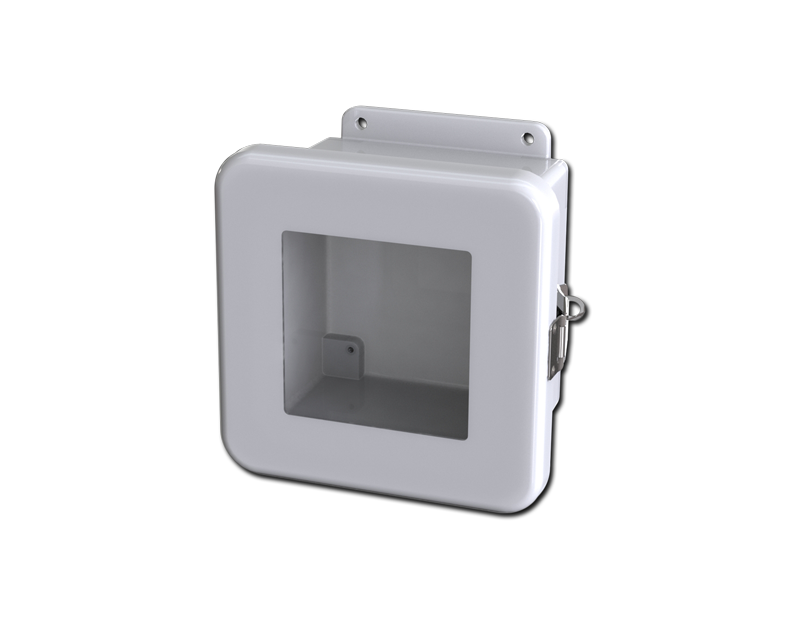

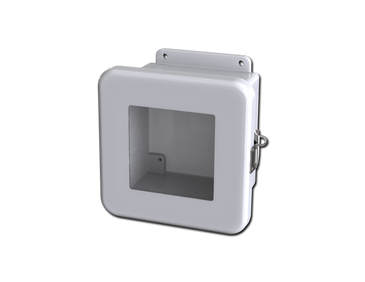

SCE-606FW | NEMA 12, 4, 4X | Fiberglass Enclosure W/Window, 8H x 8W x 5D | Saginaw

Brand: SaginawSKU: SCE-606FW

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-606FW

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-606FW

Construction

Fiberglass reinforced compression molded polyester.
Continuous memory retaining gasket.
Mounting strips molded in.
Quick release padlock latch.
Integral panel mounting inserts.
Stainless steel continuous hinge.
UVA acrylic bonded polycarbonate window.

Application

Designed for indoor or outdoor use to house electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agents and require unrestricted viewing of gauges or controls. Provides protection from dust, dirt, oil, and water.

Finish

Light gray fiberglass. Optional sub-panels are marine grade aluminum.

Industry Standards - (IS5)

NEMA Type 4, 4X, 12 and Type 13
UL Listed Type 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

UL File E64358

Specifications

Item Number	SCE-606FW
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	5
Enclosure Height (IN)	8
Enclosure Type	Fiberglass Enclosure W/Window
Enclosure Width (IN)	8
