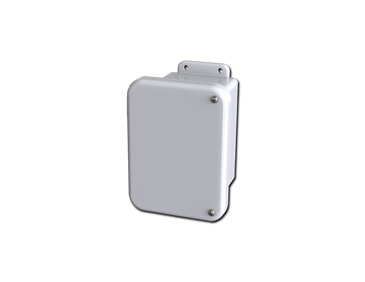

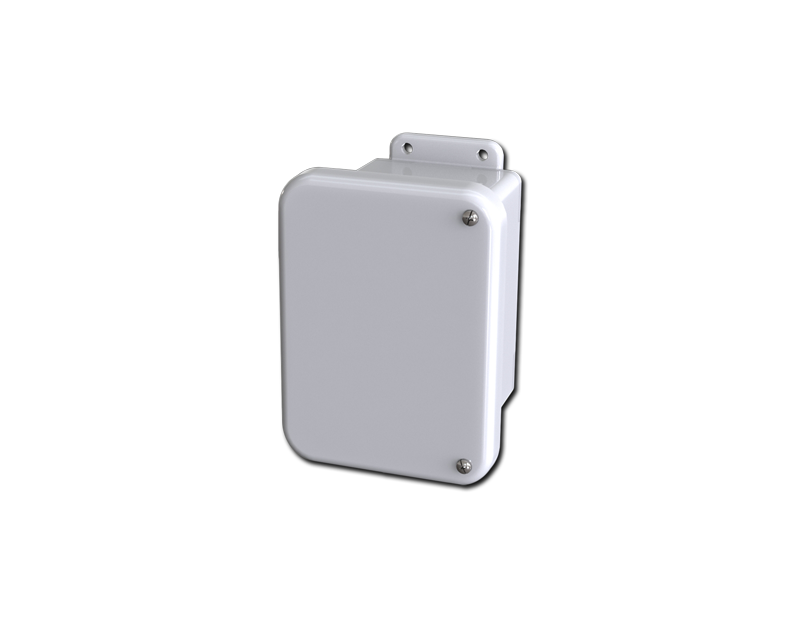

SCE-604FG | NEMA 12, 4, 4X | Fiberglass Enclosure (Hinged Screw Cover), 7H x 5W x 5D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-604FG
Documents and manuals
Saginaw SCE-604FG Documents
Overview
Details for SCE-604FG
NEMA 12, 4, 4X | Fiberglass Enclosure (Hinged Screw Cover), 7H x 5W x 5D
Construction
- Fiberglass reinforced compression molded polyester.
- Continuous memory retaining gasket.
- Mounting strips molded in.
- Captive screw fasteners.
- Integral panel mounting inserts.
- Stainless steel continuous hinge.
Application
Designed for indoor or outdoor use to house electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agent. Provides protection from dust, dirt, oil, and water.
Finish
Light gray fiberglass. Optional sub-panels are marine grade aluminum.
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
UL File E64358
Specifications
Item Number | SCE-604FG |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
1 Enclosure Rating | NEMA 4 |
1 Enclosure Rating | NEMA 4X |
Enclosure Depth (IN) | 5 |
Enclosure Height (IN) | 7 |
Enclosure Type | Fiberglass Enclosure (Hinged Screw Cover) |
Enclosure Width (IN) | 5 |
