SCE-53PCSC | Polycarbonate Screw cover, Enclosure | Saginaw

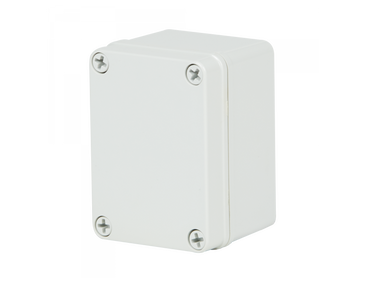

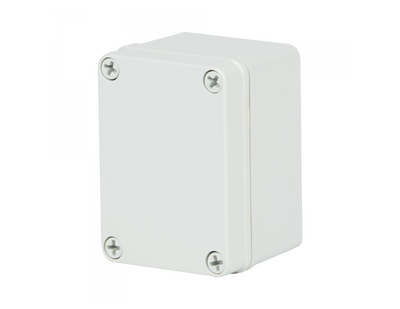

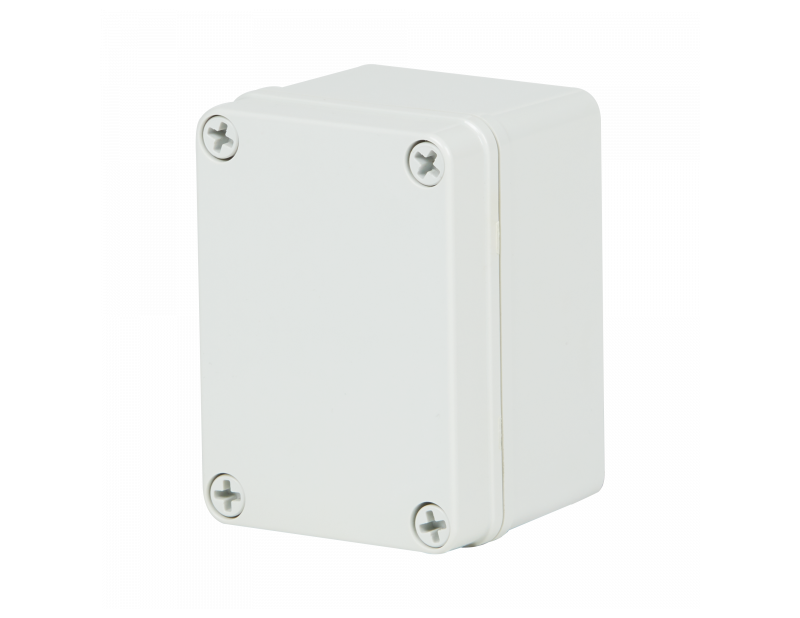

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-53PCSC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-53PCSC Documents

Installation Instructions More Info

Overview

Details for SCE-53PCSC

Polycarbonate Screw cover, Enclosure

Construction

Impact Resistant Polycarbonate.
Opaque cover.
Brass inserts for securing mounting feet.
Oil and water resistant Pour in Place gasket.
Screw cover
10-32 standoffs provided for mounting optional panels.
Multiple bosses for easy installation of devices and DIN rails.

Application

Designed for indoor or outdoor use to house electrical and electronic controls, instruments and components in areas that may be regularly hosed down or are in very wet conditions. Non-corrosive, UV resistant polycarbonate enclosure with opaque covers. Provides protection from dust, dirt, oil and water.

Finish

RAL 7035 Light Gray Polycarbonate

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

UL File E319779
