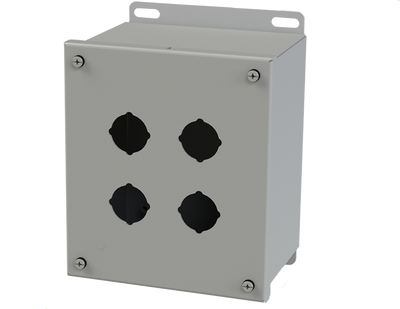

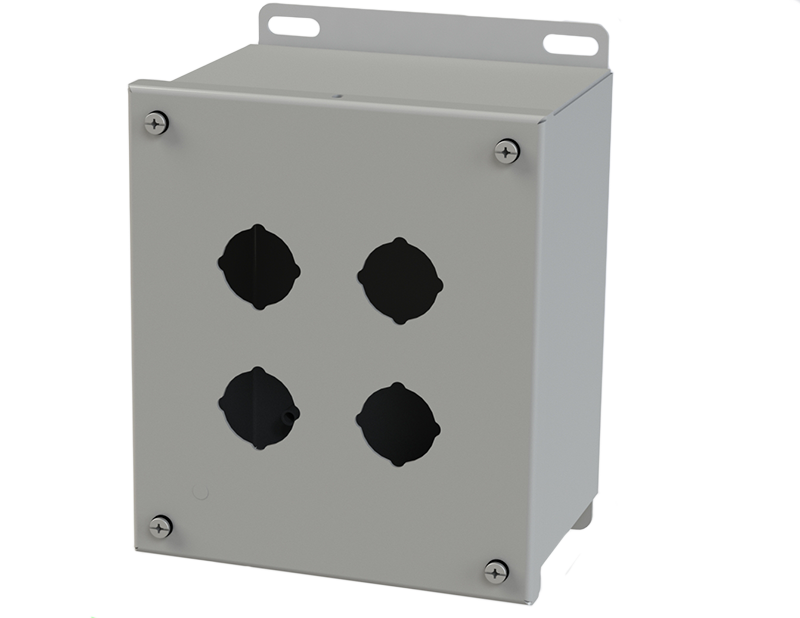

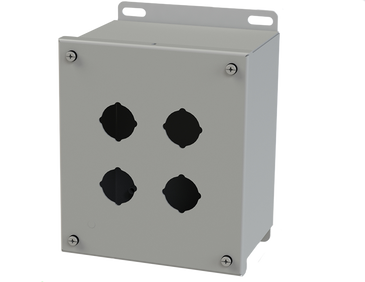

SCE-4SPBX | NEMA 12, 4 | PBX Enclosure, 7H x 6W x 5D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-4SPBX
Overview Details for SCE-4SPBX
Construction
- 0.063 In. carbon steel
- Continuously welded seams
- Captivated cover screws thread into sealed wells
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
- Immediate removal of cover is still permitted
- Pour in place oil and water resistant gasket
- Welded mounting provision top and bottom of back
Application
Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.
Finish
ANSI-61 gray powder coating inside and out.
Industry Standards - (IS2)
- NEMA Type 4, 12 and Type 13
- UL Listed Type 4 and 12
- CSA Type 4 and 12
- IEC 60529
- IP 66
Notes
Add ''I'' to catalog number to receive with 22.5mm hole diameter
Specifications
Item Number | SCE-4SPBX |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
1 Enclosure Rating | NEMA 4 |
Enclosure Depth (IN) | 5 |
Enclosure Height (IN) | 7 |
Enclosure Type | PBX Enclosure |
Enclosure Width (IN) | 6 |
