Documents: SCE-4PBSS6I

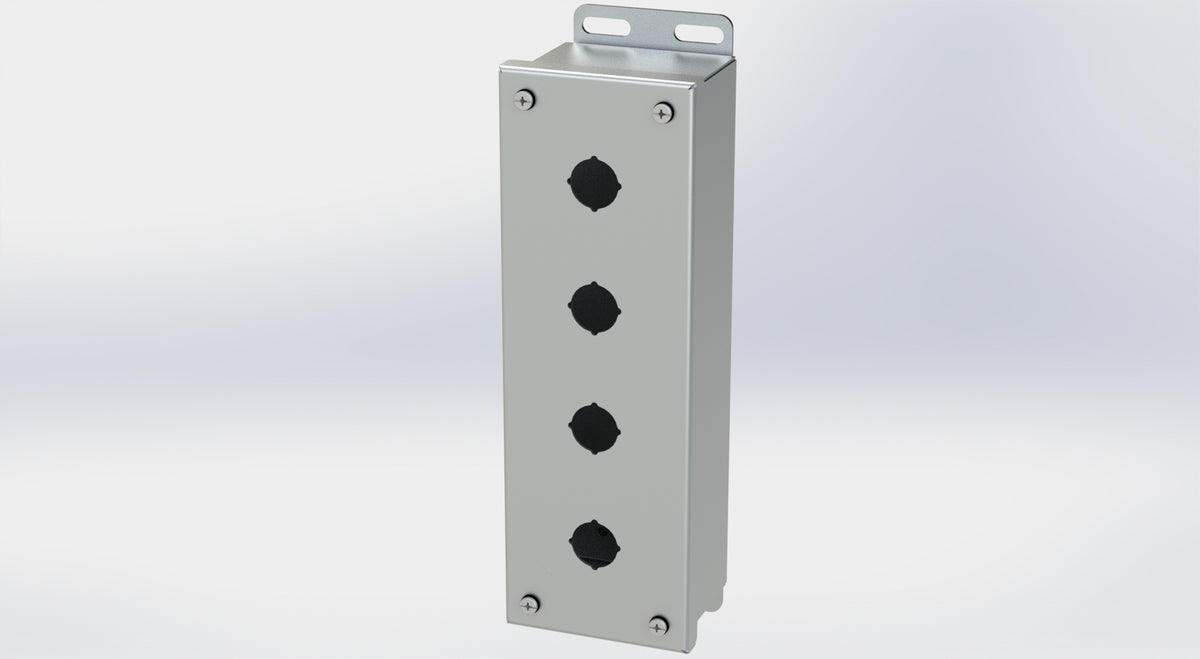

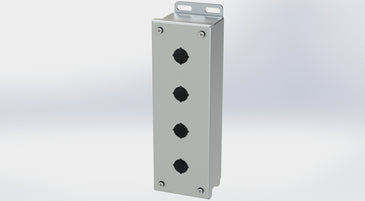

SCE-4PBSS6I | NEMA 12, 4, 4X | S.S. PB Enclosure, 10H x 3W x 3D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-4PBSS6I
Overview Details for SCE-4PBSS6I
Construction
- 0.063 In. stainless steel Type 316/316L.
- Seams continuously welded and ground smooth.
- Captivated cover screws thread into sealed wells.
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights. Hole diameter is 0.87 In. (22.5mm).
- Immediate removal of cover is permitted.
- Pour in place oil and water resistant gasket
- Welded mounting provision top and bottom of back.
Application
Designed to house standard pushbuttons, switches and pilot lights in wet and hosed down areas and in corrosive atmospheres.
Finish
#4 brushed finish on all exterior surfaces.
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Specifications
Item Number | SCE-4PBSS6I |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
1 Enclosure Rating | NEMA 4 |
1 Enclosure Rating | NEMA 4X |
Enclosure Depth (IN) | 3 |
Enclosure Height (IN) | 10 |
Enclosure Type | S.S. PB Enclosure |
Enclosure Width (IN) | 3 |
