SCE-48XEL3710SS6LP | NEMA 3R, 12, 4, 4X | S.S. XEL Enclosure, 48H x 37W x 10D | Saginaw

Brand: SaginawSKU: SCE-48XEL3710SS6LP

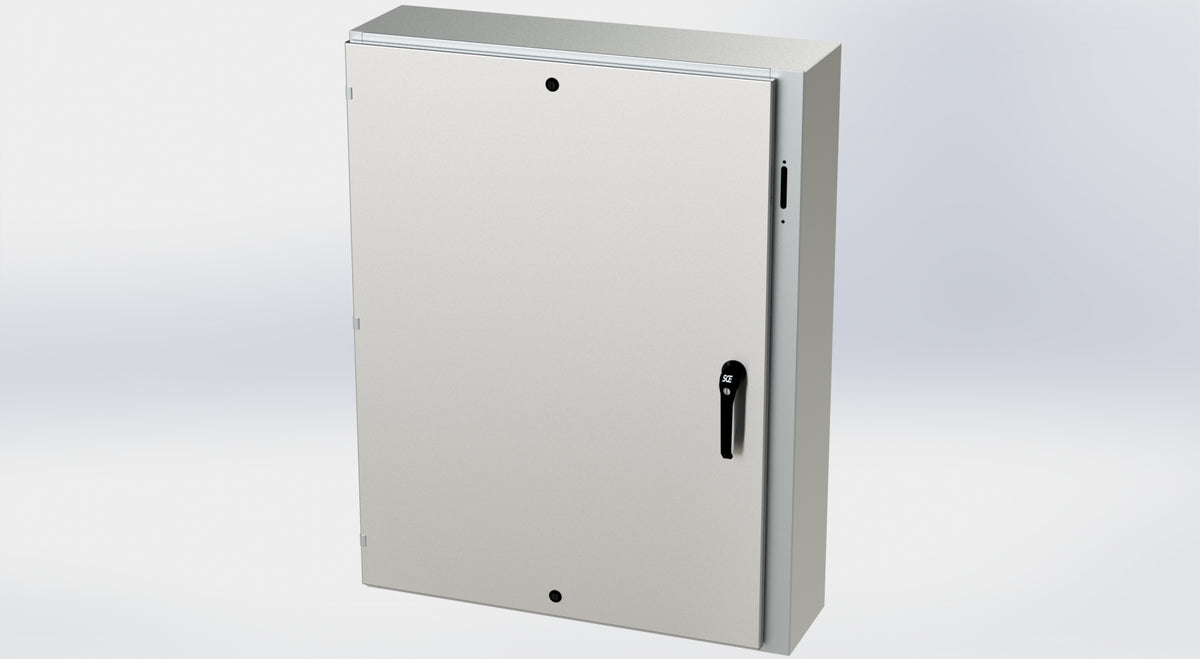

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-48XEL3710SS6LP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-48XEL3710SS6LP

Construction

0.075 In. stainless steel Type 316/316L.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Pour in place oil and water resistant gasket
Collar studs 3/8-16 provided for mounting optional panels.
Holes provided in body for mounting disconnect operating handle and operating mechanism.
Stainless steel concealed hinges.
Doors are interchangeable and easily removed by pulling hinge pin.
3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches.
Latches are opened or closed with screwdriver (optional tamper-resistant inserts available).
Mounting holes in back of enclosure.
Mounting hardware, sealing washer and hole plug included.
Ground studs on door and body.
Black zinc die cast coinproof/padlocking handle.
Removable print pocket.

Application

Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are in very wet conditions. Designed to house most standard type disconnects. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with this enclosure.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Provision for Lifting Lugs on enclosures when Height 48" and Depth 16". The Lifting Lug assembly will be included with the enclosure bolt pack.

Specifications

Item Number	SCE-48XEL3710SS6LP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	10
Enclosure Height (IN)	48
Enclosure Type	S.S. XEL Enclosure
Enclosure Width (IN)	37
