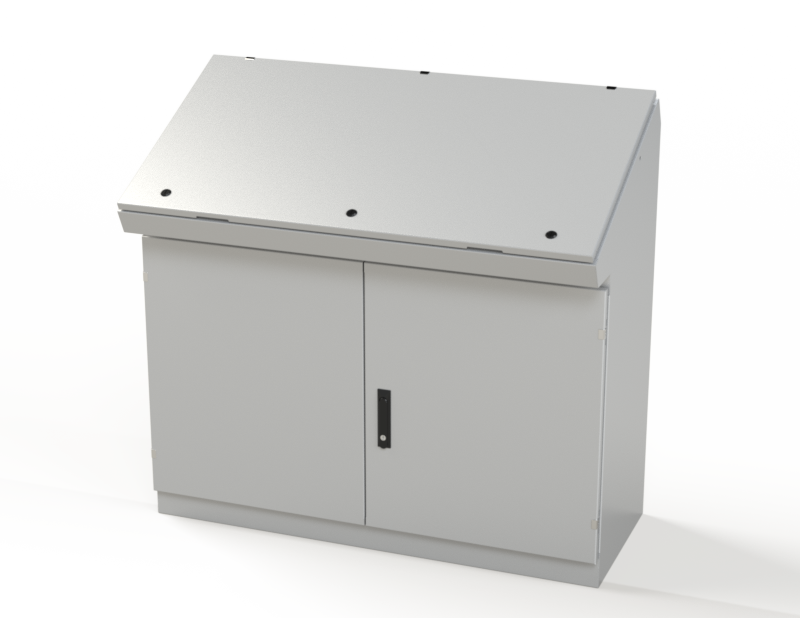

SCE-464919SDC | NEMA 3R, 12 | Console, Single Access Two Door, 46H x 49W x 19D | Saginaw

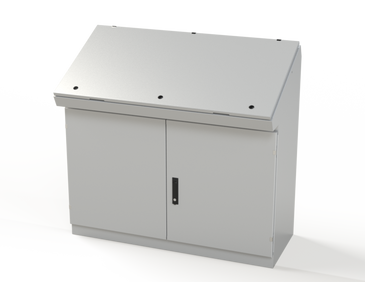

Saginaw | SCE-464919SDC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-464919SDC

Documents and manuals

Saginaw SCE-464919SDC Documents

Overview

Details for SCE-464919SDC

NEMA 3R, 12 | Console, Single Access Two Door, 46H x 49W x 19D

Construction

  • 0.075 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • 25 degree sloped top.
  • Door props on sloped door to hold in the open position.
  • Pour in place oil and water resistant gasket
  • Flange trough collar around all sides of door opening.
  • Concealed hinges.
  • Removable doors.
  • Removable print pocket.
  • Ground studs on door and body.
  • Rubber pads with provision for leveling pads on bottom of enclosure.
  • Black, quarter turn latches on top door.
  • Keylocking black 3-point flush swing handle on front door.
  • Mounting studs welded on back of interior body for mounting optional panels.
  • Mounting hardware included for (1) optional sub-panel.

Application

This product is intended for indoor use. It provides protection to personnel against access to hazardous parts. In addition, it protects the equipment inside the enclosure against introduction of solid foreign objects, falling dirt and water. It is designed for use in a standing or sitting position, supports both single and dual access, and boasts a top that opens for easier accessibility.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS3)

  • NEMA Type 3R, 12 and Type 13
  • UL Listed Type 3R and 12
  • CSA Type 3R and 12
  • IEC 60529
  • IP 55

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-464919SDC
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
Enclosure Depth (IN) 19
Enclosure Height (IN) 46
Enclosure Type Console
Enclosure Width (IN) 49
