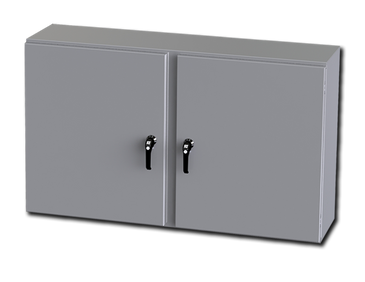

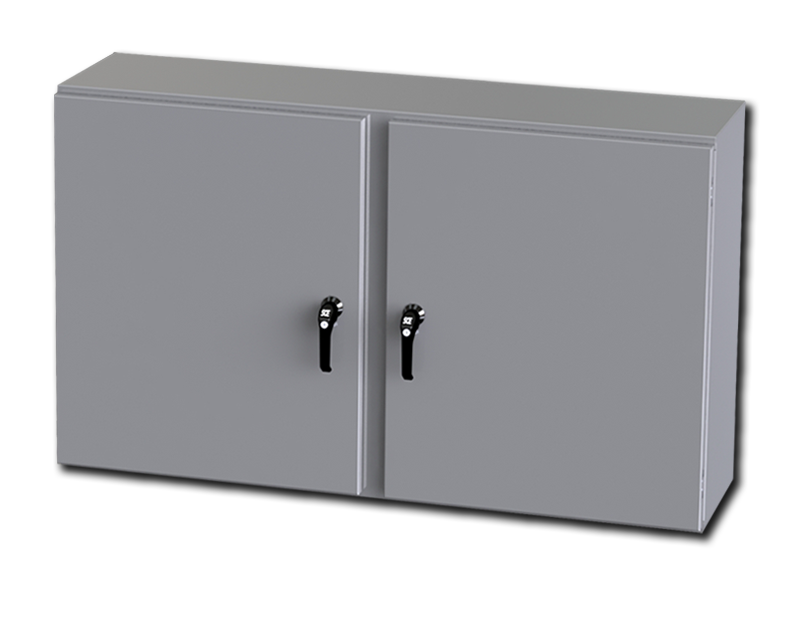

SCE-42EL6012WFALP | NEMA 3R, 12, 4 | EL WFALP Enclosure, 42H x 60W x 12D | Saginaw

Brand: SaginawSKU: SCE-42EL6012WFALP

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-42EL6012WFALP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-42EL6012WFALP

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Collar studs 3/8-16 provided for mounting optional panels.
Removable centerposts permit easy panel installation.
Mounting holes in back of the enclosure for wall mounting
Mounting hardware, sealing washers and hole plugs included.
Concealed hinges.
Removable and interchangeable doors.
Black keylocking/padlocking handles.
3-point latching mechanism.
Removable print pocket.
Pour in place oil and water resistant gasket
Ground stud on door and body.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor locations. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

For use on enclosures greater than or equal to 30" in height with a center channel.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-42EL6012WFALP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	12
Enclosure Height (IN)	42
Enclosure Type	EL WFALP Enclosure
Enclosure Width (IN)	60
