SCE-42EL3612SS6LPPL | NEMA 3R, 12, 4, 4X | S.S. LPPL Enclosure, 42H x 36W x 12D | Saginaw

Brand: SaginawSKU: SCE-42EL3612SS6LPPL

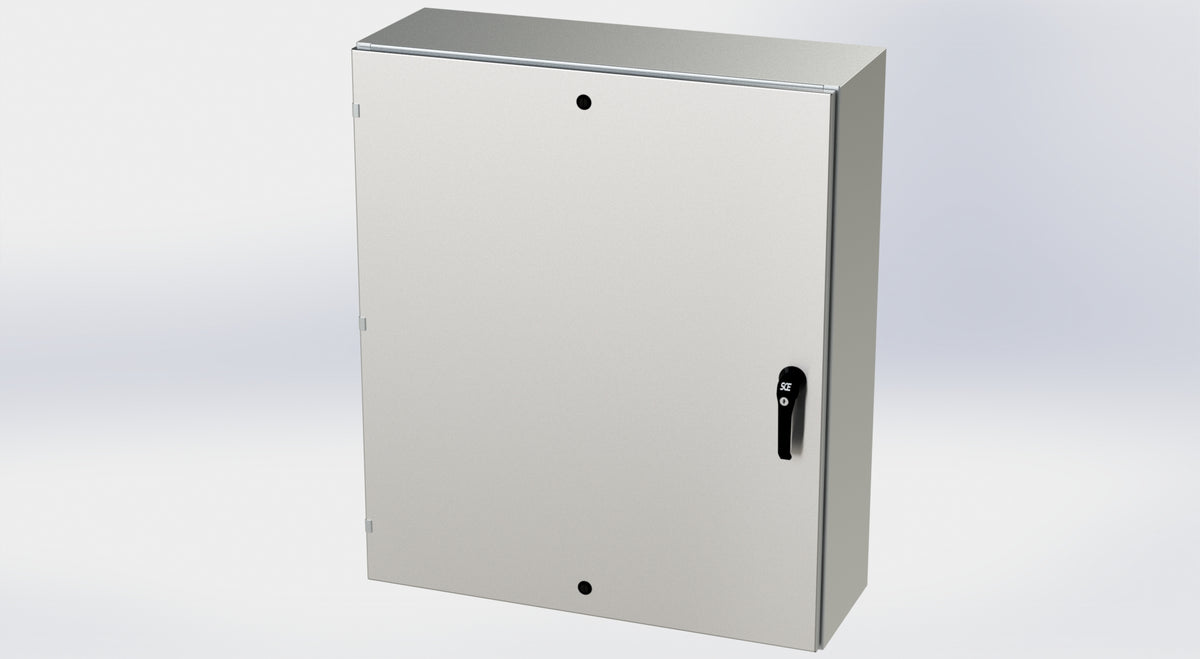

Saginaw | SCE-42EL3612SS6LPPL
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-42EL3612SS6LPPL
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-42EL3612SS6LPPL

Construction

  • 0.075 In. stainless steel Type 316/316L.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Mounting holes in back of enclosure for wall mounting.
  • Mounting hardware, sealing washer and hole plug included.
  • Stainless steel concealed hinges.
  • Removable and inchangeable doors.
  • Black zinc die cast keylocking/padlocking handle.
  • 3-point latching mechanism.
  • Removable print pocket.
  • Pour in place oil and water resistant gasket
  • Ground stud on door and body.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor or outdoor locations. For outdoor applications a drip shield is recommended. For outdoor application a drip shield is recommended.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 Brushed finish on all exterior surfaces.
Optional sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Provision for Lifting Lugs on enclosures when Height 48" and Depth 16". The Lifting Lug assembly will be included with the enclosure bolt pack.

Specifications

Item Number SCE-42EL3612SS6LPPL
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 12
Enclosure Height (IN) 42
Enclosure Type S.S. LPPL Enclosure
Enclosure Width (IN) 36
