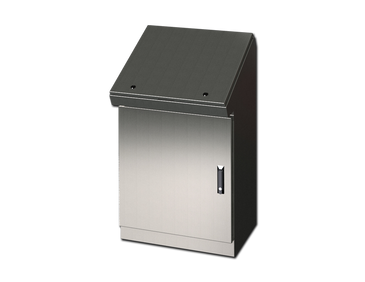

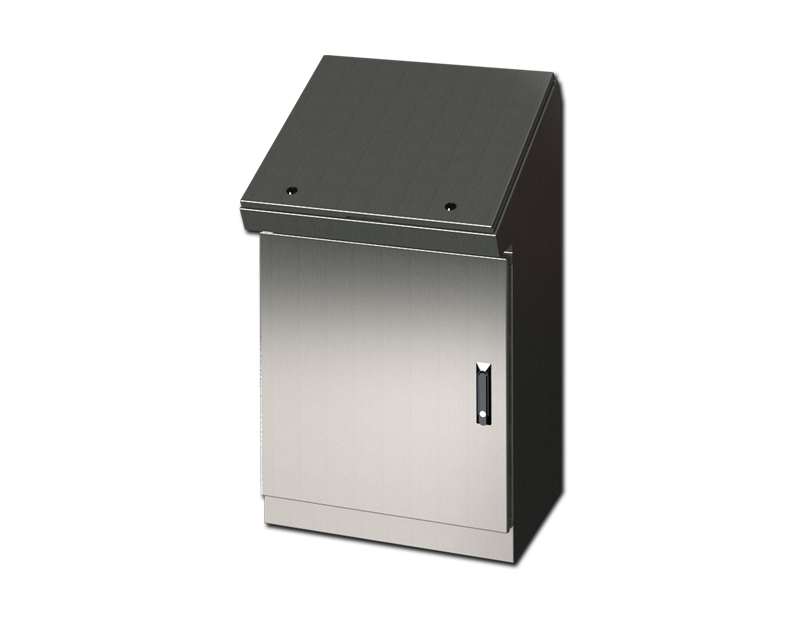

SCE-403716SDCSS6 | NEMA 3R, 12 | S.S. Console, Single Access Single Door, 40H x 37W x 16D | Saginaw

Brand: SaginawSKU: SCE-403716SDCSS6

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-403716SDCSS6

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-403716SDCSS6

Construction

0.07 In. stainless steel type 316/316L.
Seams continously welded and ground smooth.
25 degree sloped top.
Door props on sloped door to hold in the open position.
Pour in place oil and water resistant gasket
Flange trough collar around all sides of door opening.
Concealed hinges.
Removable doors.
Removable print pocket.
Ground stud on door and body.
Rubber pads with provision for leveling pads on bottom of enclosure.
Black, quarter turn latches on top door.
Keylocking black 3 point flush swing handle on front doors.
Mounting studs welded on back of interior body for mounting optional panels.
Mounting hardware included for (1) optional sub-panel.

Application

This product is intended for indoor use. It provides protection to personnel against access to hazardous parts. In addition, it protects the equipment inside the enclosure against introduction of solid foreign objects, falling dirt and water. It is designed for use in a standing or sitting position, supports both single and dual access, and boasts a top that opens for easier accessibility.

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels powder coated white.

Industry Standards - (IS3)

NEMA Type 3R, 12 and Type 13
UL Listed Type 3R and 12
CSA Type 3R and 12
IEC 60529
IP 55

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-403716SDCSS6
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
Enclosure Depth (IN)	16
Enclosure Height (IN)	40
Enclosure Type	S.S. Console
Enclosure Width (IN)	37
