SCE-3PBAI | NEMA 12, 4 | PBAI Enclosure, 4H x 8W x 5D | Saginaw

Brand: SaginawSKU: SCE-3PBAI

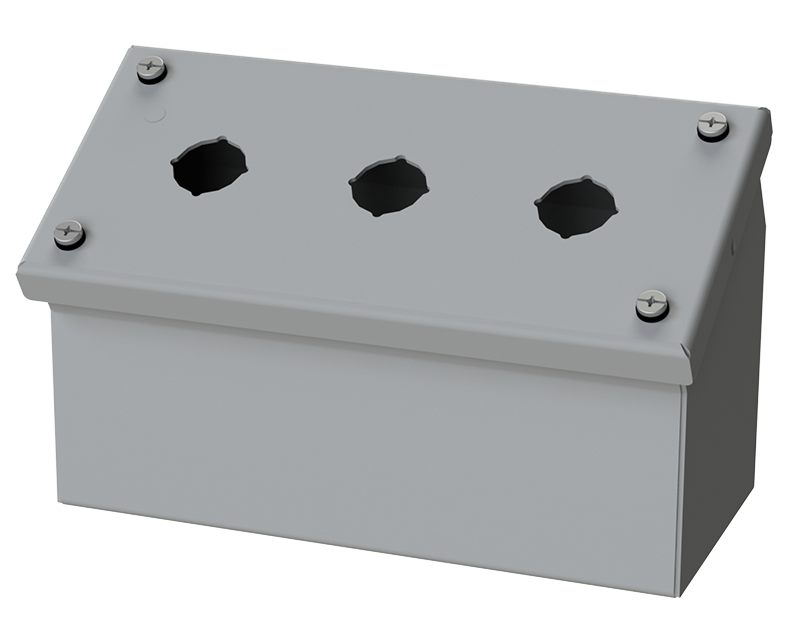

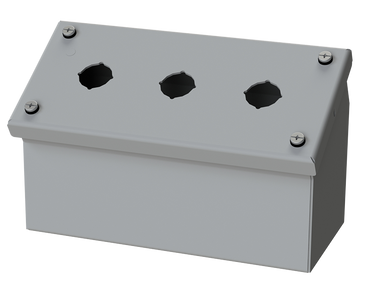

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-3PBAI

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-3PBAI

Construction

0.063 In. carbon steel.
Continuously welded seams.
Captivated cover screws thread into sealed wells.
4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 0.87 In. (22.5mm).
Immediate removal of cover is permitted.
Pour in place oil and water resistant gasket
Mounting feet included.

Application

Designed to offer protection for all standard brands of oil-tight pushbuttons, switches, and pilot lights where slanted surfaces are desired. It offers protection from dust, dirt, oil and water.

Finish

ANSI-61 gray powder coating inside and out.
Optional sub-panels are powder coated white.

Industry Standards - (IS2)

NEMA Type 4, 12 and Type 13
UL Listed Type 4 and 12
CSA Type 4 and 12
IEC 60529
IP 66

Specifications

Item Number	SCE-3PBAI
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	5
Enclosure Height (IN)	4
Enclosure Type	PBAI Enclosure
Enclosure Width (IN)	8
