Documents: SCE-36N2406NK-B
SCE-36N2406NK-B | NEMA 1 | Enclosure, Nema-1, 36H x 24W x 6D | Saginaw

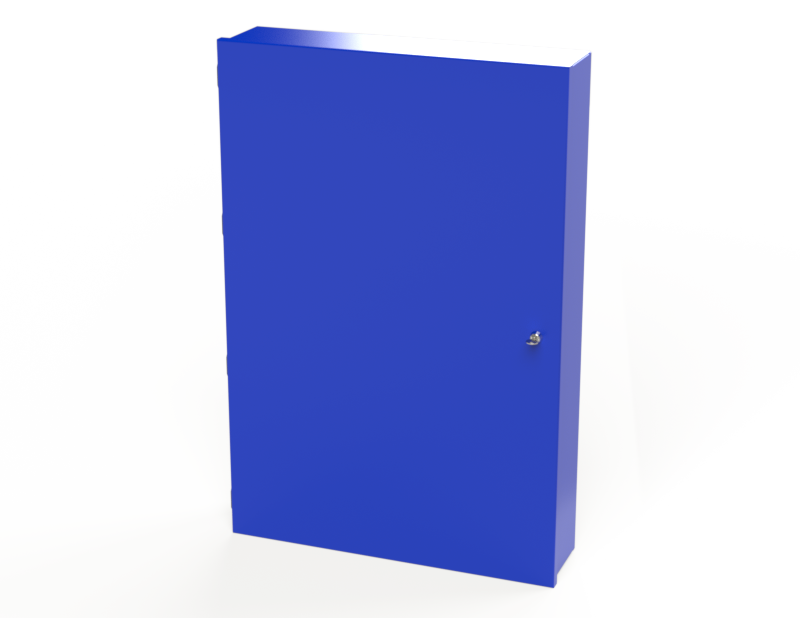

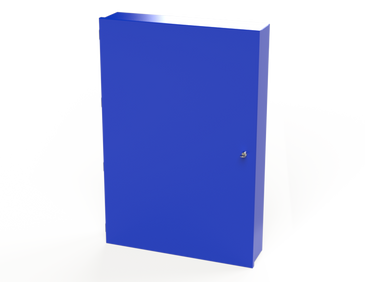

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-36N2406NK-B
Overview Details for SCE-36N2406NK-B
Construction
- 0.063 In. and 0.075 In. carbon steel depending on its size.
- Spot weld construction.
- Knockouts provided in the top, bottom right and left side.
- Standoffs provided for mounting optional panels.
- Butt hinge.
- Doors open 180 degrees.
- Key locking quarter turn latches.
- Ground stud on door.
- Mounting holes in back of enclosure.
- Subpanel with 2 In. x 2 In. mounting grid pattern included.
Industry Standards - (IS8)
- NEMA Type 1
- UL Listed Type 1
- CSA Type 1
- IEC 60529
- IP 30
Specifications
Item Number | SCE-36N2406NK-B |
Brand | Saginaw |
1 Enclosure Rating | NEMA 1 |
Enclosure Depth (IN) | 6 |
Enclosure Height (IN) | 36 |
Enclosure Type | Enclosure |
Enclosure Width (IN) | 24 |
