SCE-36H3014QFGLP | NEMA 12, 4, 4X | Fiberglass Enclosure, 39H x 33W x 14D | Saginaw

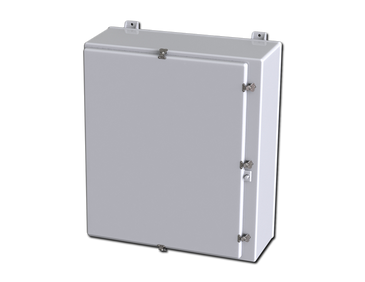

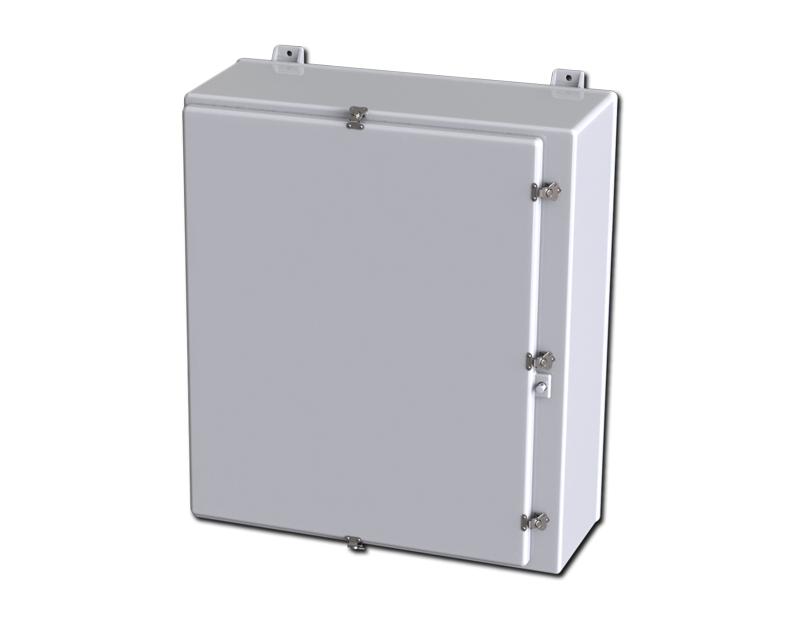

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-36H3014QFGLP

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Saginaw SCE-36H3014QFGLP Documents

Installation Instructions More Info

Overview

Details for SCE-36H3014QFGLP

NEMA 12, 4, 4X | Fiberglass Enclosure, 39H x 33W x 14D

Construction

Fiberglass reinforced compression molded polyester.
Pour in place oil and water resistant gasket.
Mounting feet molded in.
Quick release latches.
Padlock hasp and staple.
Integral panel mounting inserts.
Stainless steel continuous hinge.

Application

Designed for indoor or outdoor use to house electrical and electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agents. Provides protection from dust, dirt, oil and water

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

Light gray fiberglass. Optional sub-panels are marine grade aluminum.

Industry Standards - (IS5)

NEMA Type 4, 4X, 12 and Type 13
UL Listed Type 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

UL File E64358

Specifications

Item Number	SCE-36H3014QFGLP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	14
Enclosure Height (IN)	39
Enclosure Type	Fiberglass Enclosure
Enclosure Width (IN)	33
