SCE-36EL4216WFLP | NEMA 3R, 12, 4 | EL WFLP Enclosure, 36H x 42W x 16D | Saginaw

Brand: SaginawSKU: SCE-36EL4216WFLP

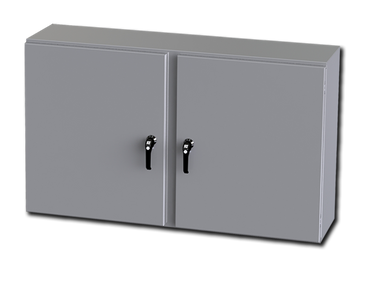

Saginaw | SCE-36EL4216WFLP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-36EL4216WFLP
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-36EL4216WFLP

Construction

  • 0.075 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Removable centerposts permit easy panel installation.
  • Mounting holes in back of the enclosure for wall mounting
  • Mounting hardware, sealing washers and hole plugs included.
  • Concealed hinges.
  • Removable and interchangeable doors.
  • Black keylocking/padlocking handles.
  • 3-point latching mechanism.
  • Removable print pocket.
  • Pour in place oil and water resistant gasket
  • Ground stud on door and body.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor locations. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66

Notes

For use on enclosures greater than or equal to 30" in height with a center channel.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-36EL4216WFLP
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 16
Enclosure Height (IN) 36
Enclosure Type EL WFLP Enclosure
Enclosure Width (IN) 42
