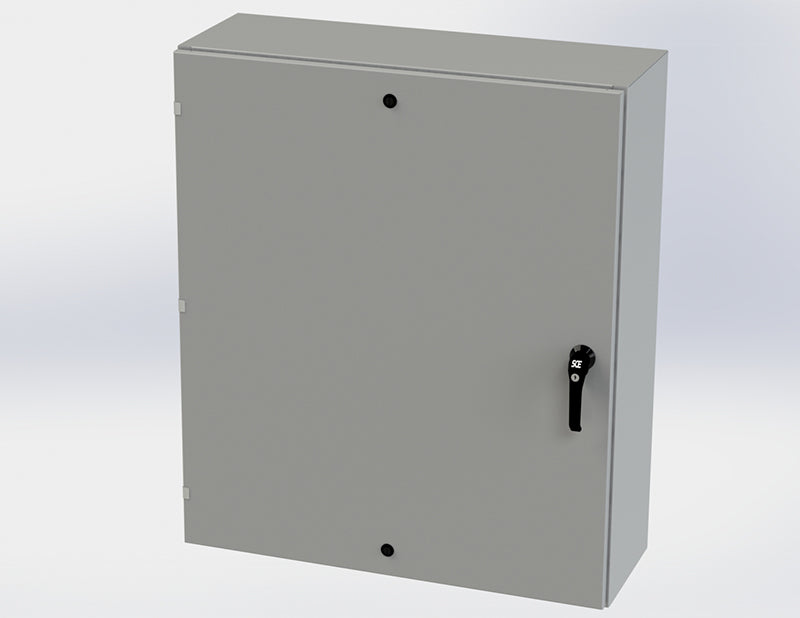

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-36EL3612LPPL

Jump to: Overview & Specifications Reviews

Overview Details for SCE-36EL3612LPPL

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Collar studs provided for mounting optional sub-panels.
Mounting holes in back of enclosure for wall mounting.
Mounting hardware, sealing washer and hole plugs included.
Concealed hinges.
Removable and interchangeable doors.
Black zinc die cast keylocking/padlocking handle.
3-point latching mechanism.
Black quarter turn latches as required.
Removable print pocket.
Pour in place oil and water resistant gasket
Ground stud on door and body.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor or outdoor locations. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Provision for Lifting Lugs on enclosures when Height 48" and Depth 16". The Lifting Lug assembly will be included with the enclosure bolt pack.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
