SCE-30R2408LP | NEMA 3R | Type-3R Hinged Cover Enclosure, 30H x 24W x 8D | Saginaw

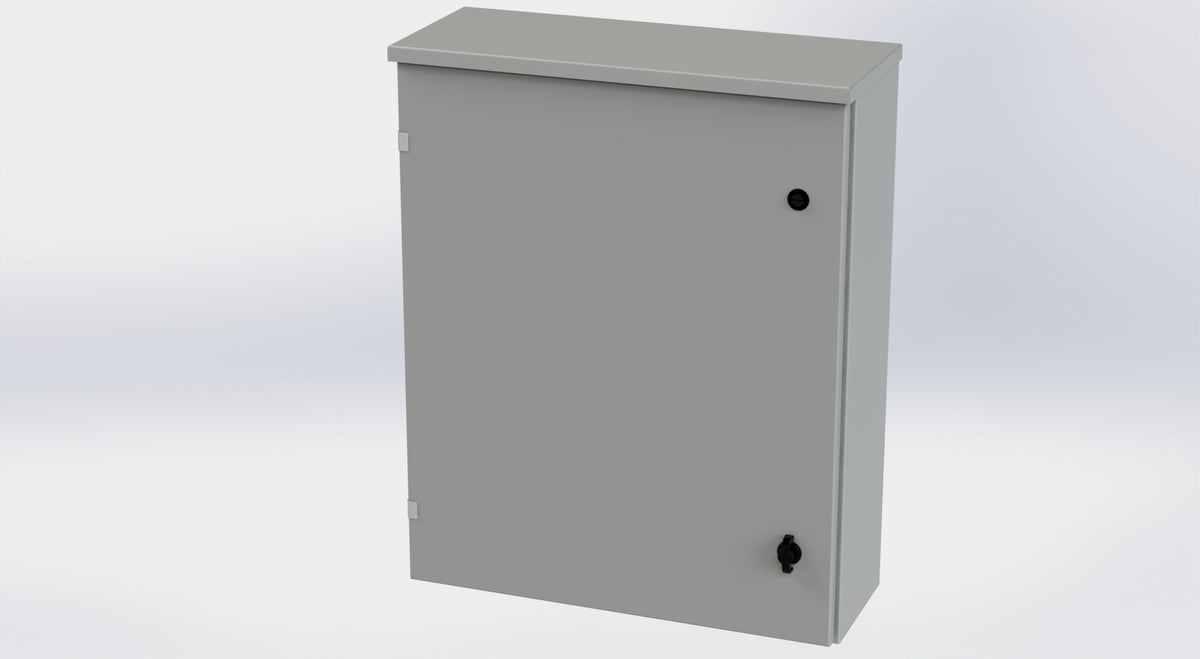

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-30R2408LP
Documents and manuals
Overview
Details for SCE-30R2408LP
NEMA 3R | Type-3R Hinged Cover Enclosure, 30H x 24W x 8D
Construction
- 0.048 In., 0.063 In. and 0.075 In. Galvannealed steel
- Concealed hinges
- Spot weld construction
- Rain cap
- Mounting hole in back of enclosure
- Collar studs 3/8-16 provided for mounting optional panels
- Black quarter turn wing knob latch with padlocking provisions
- Doors open 180 degrees
- Pour in place oil and water resistant gasket
- Ground stud on door and body
- 3/8-16 grounding kit
- Sub-panel mounting hardware included
Application
Designed to house electrical controls, instruments and components in an outdoor environment. Protects against rain, sleet and snow.
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS7)
- NEMA Type 3R
- UL Listed Type 3R
- CSA Type 3R
- IEC 60529
- IP 32
Specifications
Item Number | SCE-30R2408LP |
Brand | Saginaw |
1 Enclosure Rating | NEMA 3R |
Enclosure Depth (IN) | 8 |
Enclosure Height (IN) | 30 |
Enclosure Type | Type-3R Hinged Cover Enclosure |
Enclosure Width (IN) | 24 |
