SCE-30H2408LP | NEMA 3R, 12, 4 | Nema 4 LP Enclosure, 30H x 24W x 8D | Saginaw

Brand: SaginawSKU: SCE-30H2408LP
Saginaw | SCE-30H2408LP

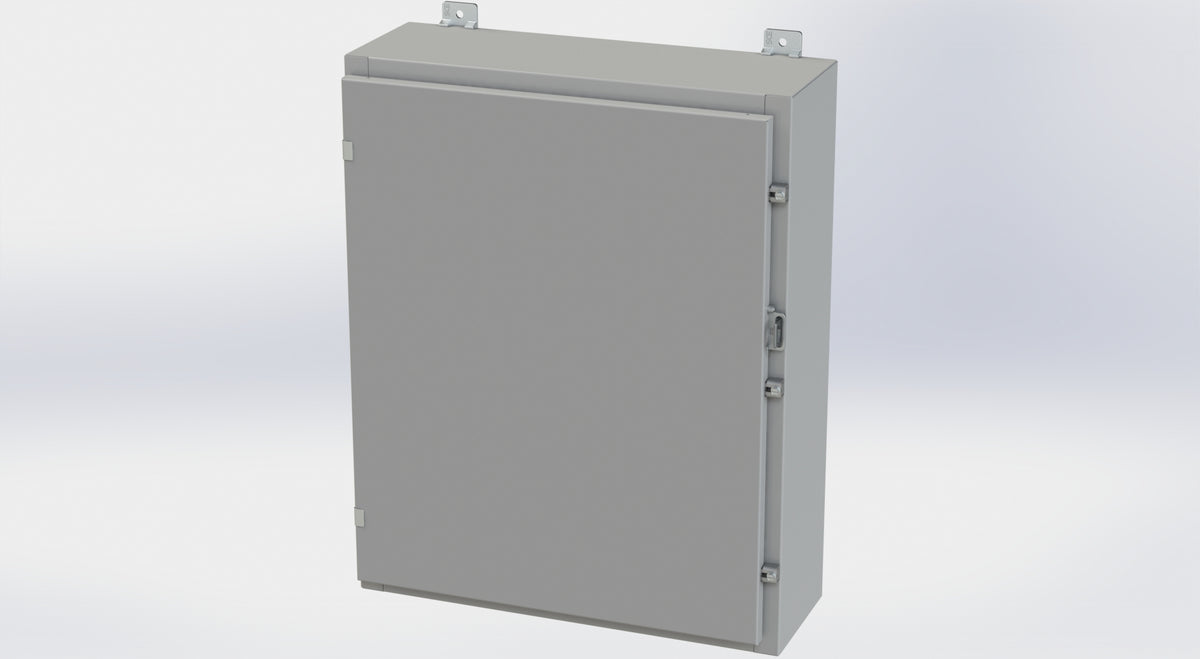

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-30H2408LP
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-30H2408LP

Construction

  • 0.075 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Door clamps are quick and easy to operate.
  • Concealed hinge.
  • Hasp and staple for padlocking.
  • Pour in place oil and water resistant gasket
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Ground stud on door.
  • Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
  • External mounting provision top and bottom of back.

Application

Designed to house electrical and electronic controls, instrument, and components. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional panels are powder coated white.

Industry Standards - (IS4)

  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66

Notes

Provision for Lifting Lugs on enclosures when Height 48" and Depth 16". The Lifting Lug assembly will be included with the enclosure bolt pack.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-30H2408LP
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 8
Enclosure Height (IN) 30
Enclosure Type Nema 4 LP Enclosure
Enclosure Width (IN) 24
