Documents: SCE-30H2010QFGLP
SCE-30H2010QFGLP | NEMA 12, 4, 4X | Fiberglass Enclosure, 33H x 21W x 10D | Saginaw

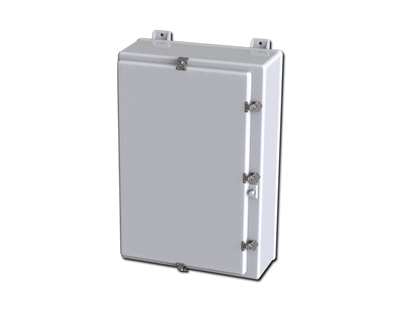

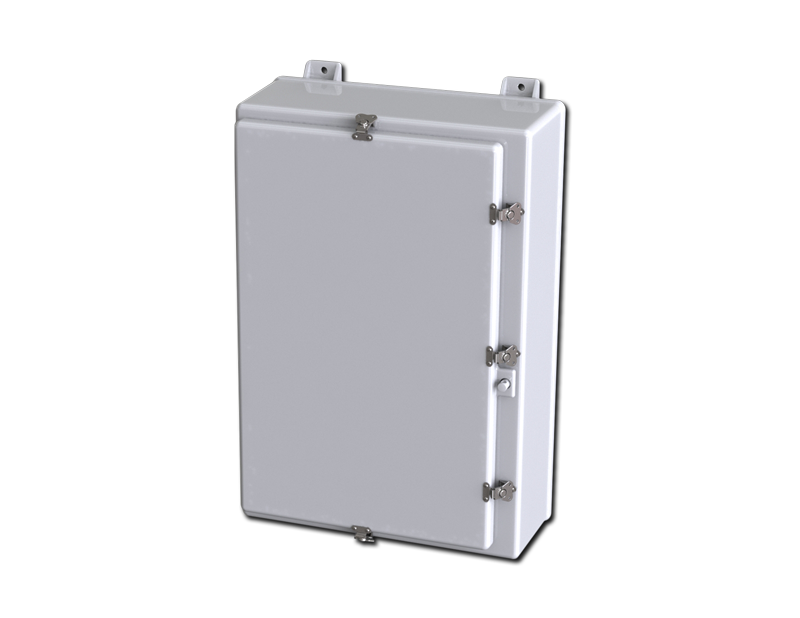

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-30H2010QFGLP
Overview Details for SCE-30H2010QFGLP
Construction
- Fiberglass reinforced compression molded polyester.
- Pour in place oil and water resistant gasket.
- Mounting feet molded in.
- Quick release latches.
- Padlock hasp and staple.
- Integral panel mounting inserts.
- Stainless steel continuous hinge.
Application
Designed for indoor or outdoor use to house electrical and electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agents. Provides protection from dust, dirt, oil and water
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
Light gray fiberglass. Optional sub-panels are marine grade aluminum.
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
UL File E64358
Specifications
Item Number | SCE-30H2010QFGLP |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
1 Enclosure Rating | NEMA 4 |
1 Enclosure Rating | NEMA 4X |
Enclosure Depth (IN) | 10 |
Enclosure Height (IN) | 33 |
Enclosure Type | Fiberglass Enclosure |
Enclosure Width (IN) | 21 |
