SCE-24XEL2508LP | NEMA 3R, 12, 4 | XEL LP Enclosure, 24H x 25W x 8D | Saginaw

Brand: SaginawSKU: SCE-24XEL2508LP

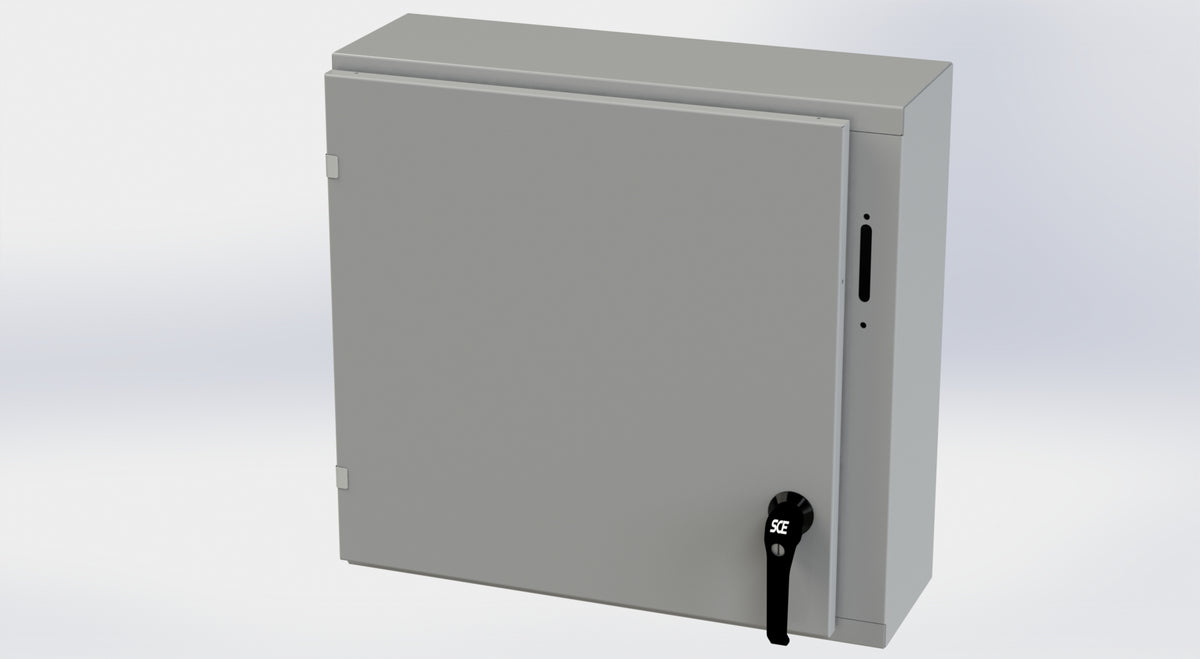

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-24XEL2508LP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-24XEL2508LP

Construction

0.075 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Pour in place oil and water resistant gasket
Collar studs 3/8-16 provided for mounting optional panels.
Disconnect cutout provided on flange.
Concealed hinges.
Doors are interchangeable and easily removed by pulling hinge pins.
3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches.
Latches are opened or closed with a screwdriver (optional tamper-resistant inserts are available).
Mounting holes on back of enclosure.
Mounting hardware, sealing washer and hole plug included.
Ground studs on door and body.
Black zinc die cast coinproof/padlocking handle.
Removable print pocket.

Application

Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. Designed to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with this enclosure.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Provision for Lifting Lugs included on enclosures with Height 48" and with Depth 16". The Lifting Lug assembly will be included with the enclosure bolt pack and hole plugs provided to seal holes in bottom of enclosure.

Specifications

Item Number	SCE-24XEL2508LP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	8
Enclosure Height (IN)	24
Enclosure Type	XEL LP Enclosure
Enclosure Width (IN)	25
