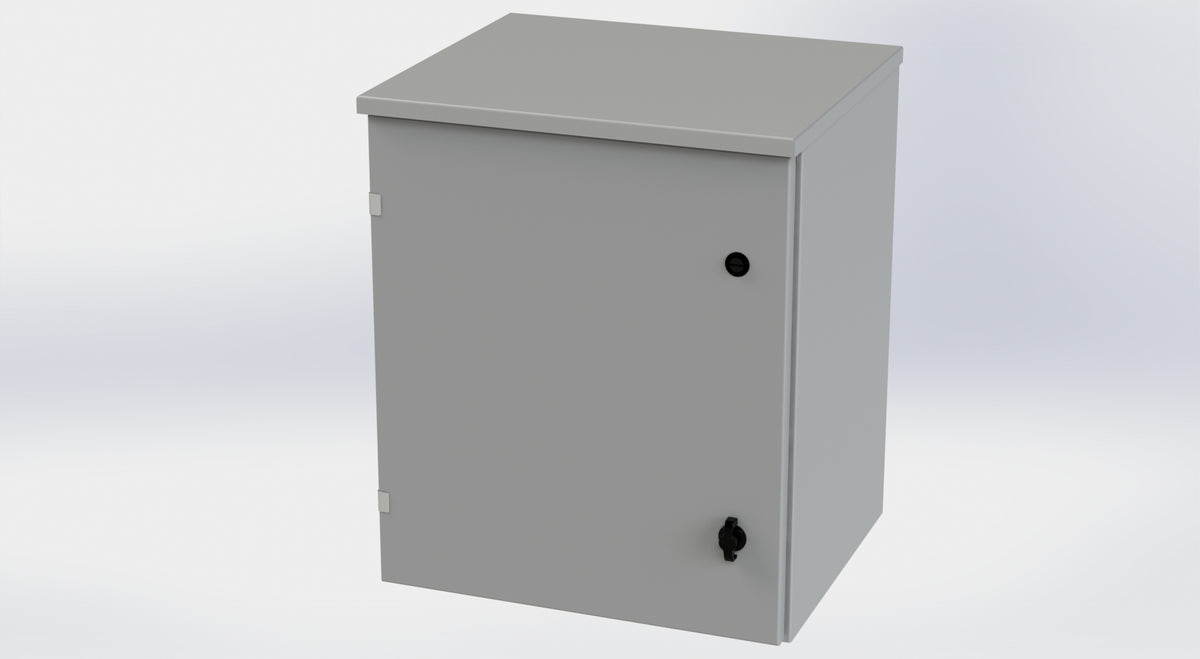

SCE-24R2016LP | NEMA 3R | Type-3R Hinged Cover Enclosure, 24H x 20W x 16D | Saginaw

Brand: SaginawSKU: SCE-24R2016LP

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-24R2016LP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-24R2016LP

Construction

0.048 In., 0.063 In. and 0.075 In. Galvannealed steel
Concealed hinges
Spot weld construction
Rain cap
Mounting hole in back of enclosure
Collar studs 3/8-16 provided for mounting optional panels
Black quarter turn wing knob latch with padlocking provisions
Doors open 180 degrees
Pour in place oil and water resistant gasket
Ground stud on door and body
3/8-16 grounding kit
Sub-panel mounting hardware included

Application

Designed to house electrical controls, instruments and components in an outdoor environment. Protects against rain, sleet and snow.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS7)

NEMA Type 3R
UL Listed Type 3R
CSA Type 3R
IEC 60529
IP 32

Specifications

Item Number	SCE-24R2016LP
Brand	Saginaw
1 Enclosure Rating	NEMA 3R
Enclosure Depth (IN)	16
Enclosure Height (IN)	24
Enclosure Type	Type-3R Hinged Cover Enclosure
Enclosure Width (IN)	20
