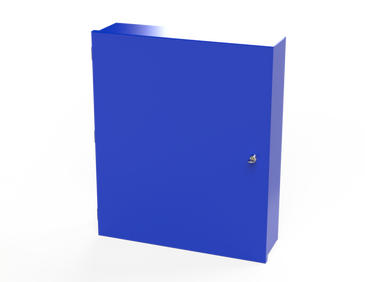

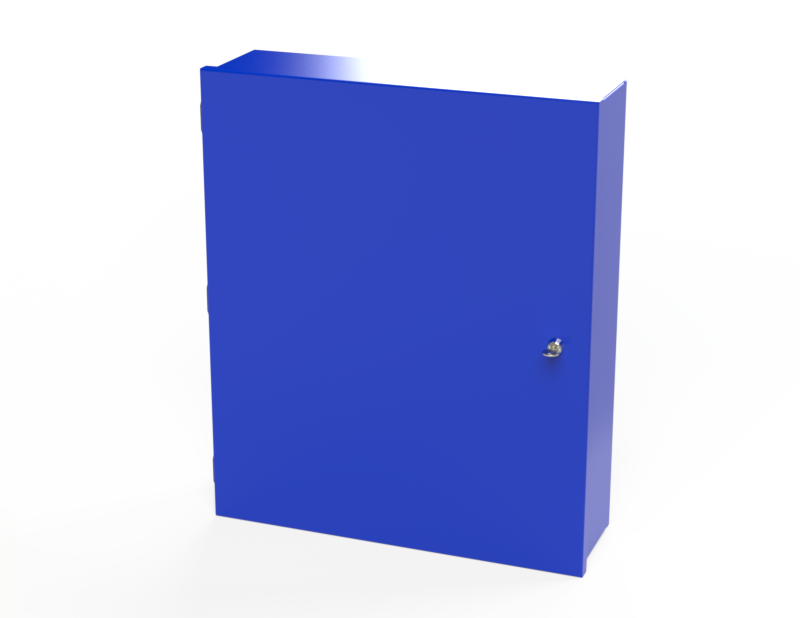

SCE-24N2006NK-B | NEMA 1 | Enclosure, Nema-1, 24H x 20W x 6D | Saginaw

NEMA 1 | Enclosure, Nema-1, 24H x 20W x 6D

Construction

• 0.063 In. and 0.075 In. carbon steel depending on its size.
• Spot weld construction.
• Knockouts provided in the top, bottom right and left side.
• Standoffs provided for mounting optional panels.
• Butt hinge.
• Doors open 180 degrees.
• Key locking quarter turn latches.
• Ground stud on door.
• Mounting holes in back of enclosure.
• Subpanel with 2 In. x 2 In. mounting grid pattern included.

Industry Standards - (IS8)

• NEMA Type 1
• UL Listed Type 1
• CSA Type 1
• IEC 60529
• IP 30
